Hongyun brand desktop tile cutter is divided into 3 models: HY800 type, HY1200 type and HY1800 type. The 800 type is suitable for cutting various types of boards such as skirting tiles, mosaics, and ancient building tiles. Model 1200 is suitable for batch cutting. The machine is easy to operate and has a high degree of automation. The 1800 type can cut ceramic tiles/rock slabs within 1.8 meters at most. The surface of the cut plates will not collapse, and the corners will not drop, and the stability is good.

　How to use the tile cutter?

　1. Open the free foot and tighten the nut.

　2. Adjust the size to be cut on the ruler, and tighten the fixing screw by hand after confirmation.

　3. Put the tiles on the platform.

   4. When cutting, first pull the push-pull rod to the back end, let the blade lightly press on the tile, push forward along the main shaft to the front control groove, put the box foot on the tile, and tap the end of the push-pull handle lightly. , The tile can be broken with the blade mark.

　Tile cutting precautions:

　1. Reduce the cutting speed appropriately, 1.4 m/min is recommended. Both hands force the cutting machine table to move forward for cutting at a constant speed. When the contact point of the cutting piece is 10-20mm with the end of the brick, the advancing speed must be slowed down to prevent the collapse angle. During the pushing process, do not press the brick with both hands.

　2. In the cutting process, properly control the cutting speed. When down the cutting blade, it should be slow, and it can be faster in the middle. When closing the blade, it must be closed slowly to prevent dropping corners.

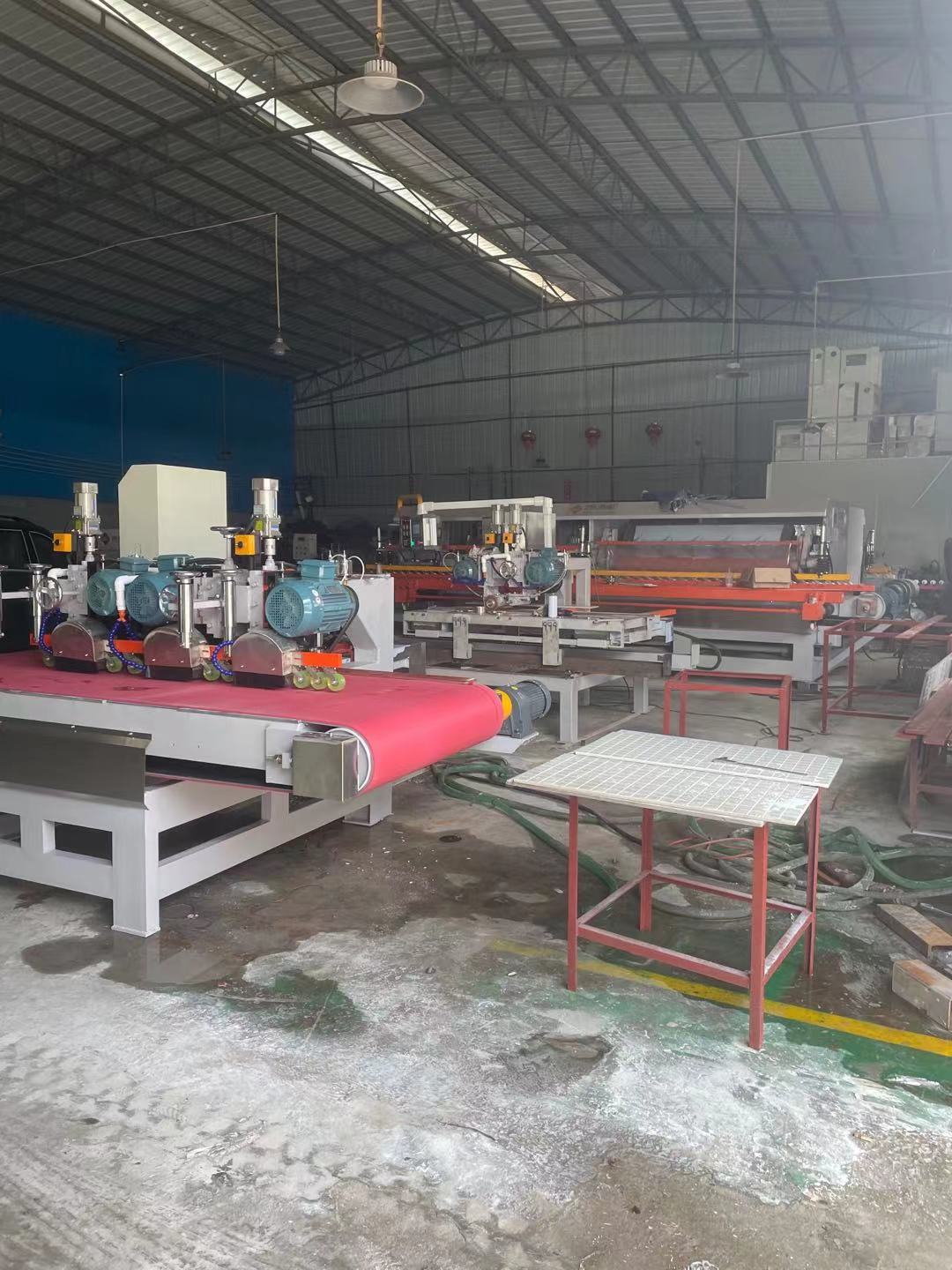

  Foshan Nanhai Hongyun Ceramic Machinery Co., Ltd. is a 14-year-old manufacturer of tile deep processing equipment. At present, the main quality production: water jet cutter, rock slab 45 degree beveling machine, rock slab CNC bridge cutting machine, rock slab special-shaped edge grinding machine,arc polishing machine, CNC three-blade cutter, manual CNC cutter, dry cutting 45 degree production line, etc. The company integrates sales, after-sales, and installation through one-stop service for every customer, one-on-one installation guidance and training operation technology, welcome to the factory for on-site inspection and consultation!
