Hongyun 800 double group continuous cutting machine foshan ceramic tile cutting machine manufacturer
time : 2021-06-11 15:33 views : 36

Product introduction of HY-800 double group continuous cutting machine:

    The 800-type double-group continuous cutting machine is our company's latest product suitable for cutting foundation lines, mosaics, and ancient building tiles. The cutting efficiency is high, the stability is strong, and it is truly multi-purpose. The diameter range of cutting blades can be installed: 180~300mm, cutting spindle adopts water cooling to make the spindle more wear-resistant. The machine runs fully automatically and greatly saves labor. It is one of the most popular products for ceramic and stone deep processing enterprises.


The advantages of HY-800 double-group continuous cutting machine:

1. double group multi-blade cutting

    No corner drop, high cutting efficiency, strong stability, real realization-one machine with multiple functions.

2.water cooling

   The cutting spindle adopts water cooling to reduce the high temperature, which makes the spindle more wear-resistant. The machine runs  fully automatically, which greatly saves labor.

3. multi-purpose

    It is suitable for cutting all kinds of tiles such as skirting line/mosaic/ancient tiles.

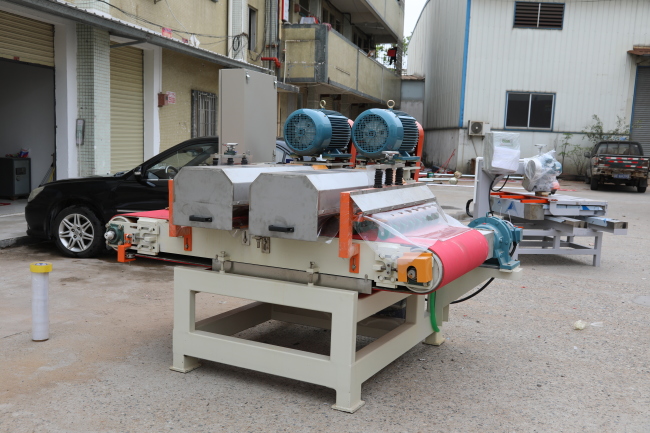

800 double group continuous cutting machine

HY-800 double group continuous cutting machine equipment parameters:

   Equipment name: Double group continuous cutting machine


   Equipment model: HY-800


   conveyor belt width: 820mm


   Conveyor belt speed: 0.8-4.0 m/min


   Maximum cutting thickness: 30mm


   Spindle motor power: 22KW


   Total power: 32.6KW


   Blade diameter: 150mm-300mm


   Equipment weight: 2600kg


   Size: 2600mm*1780mm*1630mm

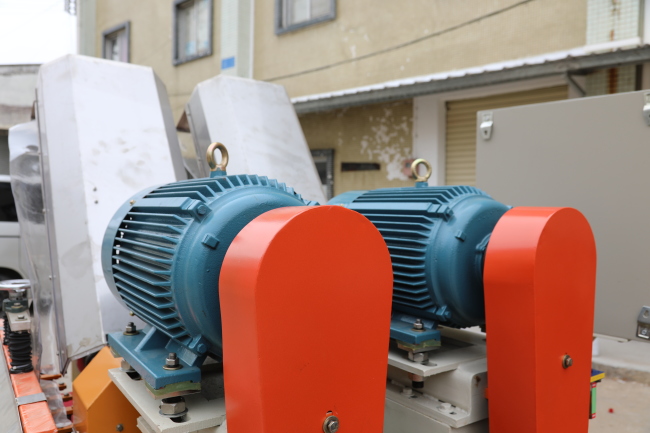

Double group cutter head

       Foshan Nanhai Hongyun Ceramic Machinery Co., Ltd. is a 14-year-old company focusing on the production of ceramic tile deep processing equipment. Since its establishment, it has been insisting on using high-quality raw materials, advanced production technology and equipment to produce batches of high-quality, durable, safe and reliable product. The company is a one-stop service company integrating production, sales, installation training-after-sales, and has been awarded the title of industry sales advanced unit for many consecutive years.welcome to visit the factory for on-site investigation and consultation!
