The 800 single group multi-blade continuous cutting machine is the latest cutting machine developed by our company. It is suitable for cutting ceramic tiles or stone, and can process skirting tiles, ancient building tiles,roof tiles, grey brick, PC bricks,mosaic,etc.


1. The performance and characteristics of product:

(1) The machine can cut tiles of different widths at one time, and the processing width can reach 25-800mm;

(2) Equipped with automatic pressing plate, can process 10*10 mosaics;

(3)The machine has reasonable design and high precision, and its advantages include high cutting efficiency, high precision, and high output;

(4)The cold water device type bearing seat is adopted, and long-term processing does not generate heat or high temperature, so the bearing life is longer;

(5) Adopts "V"-shaped belt to ensure belt accurate transmission;

(6)The dovetail groove is used for lifting, and adopts double support gantry structure, which is stable and has little vibration during processing.


2. Technical parameters:


Model

Number of spindles

Spindle motor power

Conveyor belt width

Conveyor belt speed

LJ.1/ 600

1

15kw

620mm

0.8-4.0m/min

LJ.1/ 800

1

15kw

820mm

0.8-4.0m/min

Model

Diameter of blade

Machinable width

Maximum cuttingthickness

Lifting motor power

LJ.1/ 600

Φ250-Φ300mm

20-600mm

20mm

0.75kw

LJ.1/ 800

Φ250-Φ300mm

20-800mm

20mm

0.75kw

Model

Total power

Weight

Size

LJ.1/ 600

16.5kw

1600kg

2110*1580*1630mm

LJ.1/ 800

16.5kw

1800kg

2110*1780*1630mm


3. Equipment display:

800 Single Group Continuous Cutting Machine.

Single group detail

4.The processing effect:

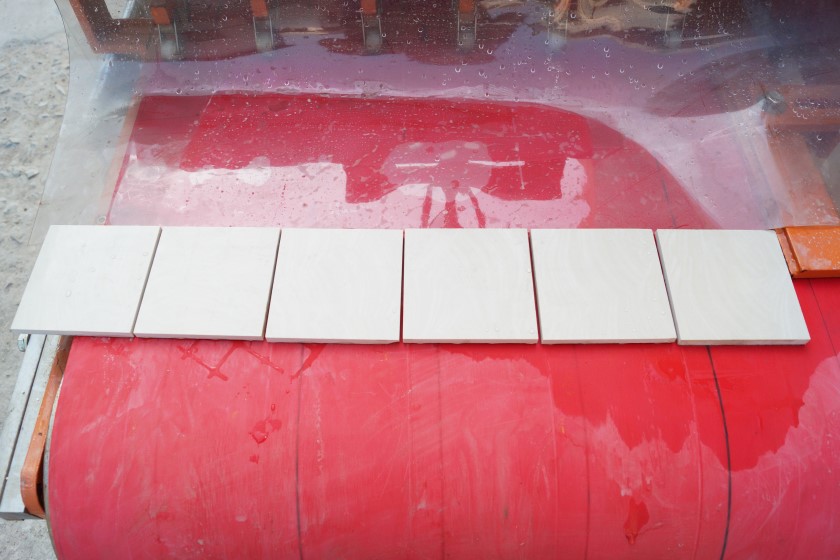

The cutting effect


Brick

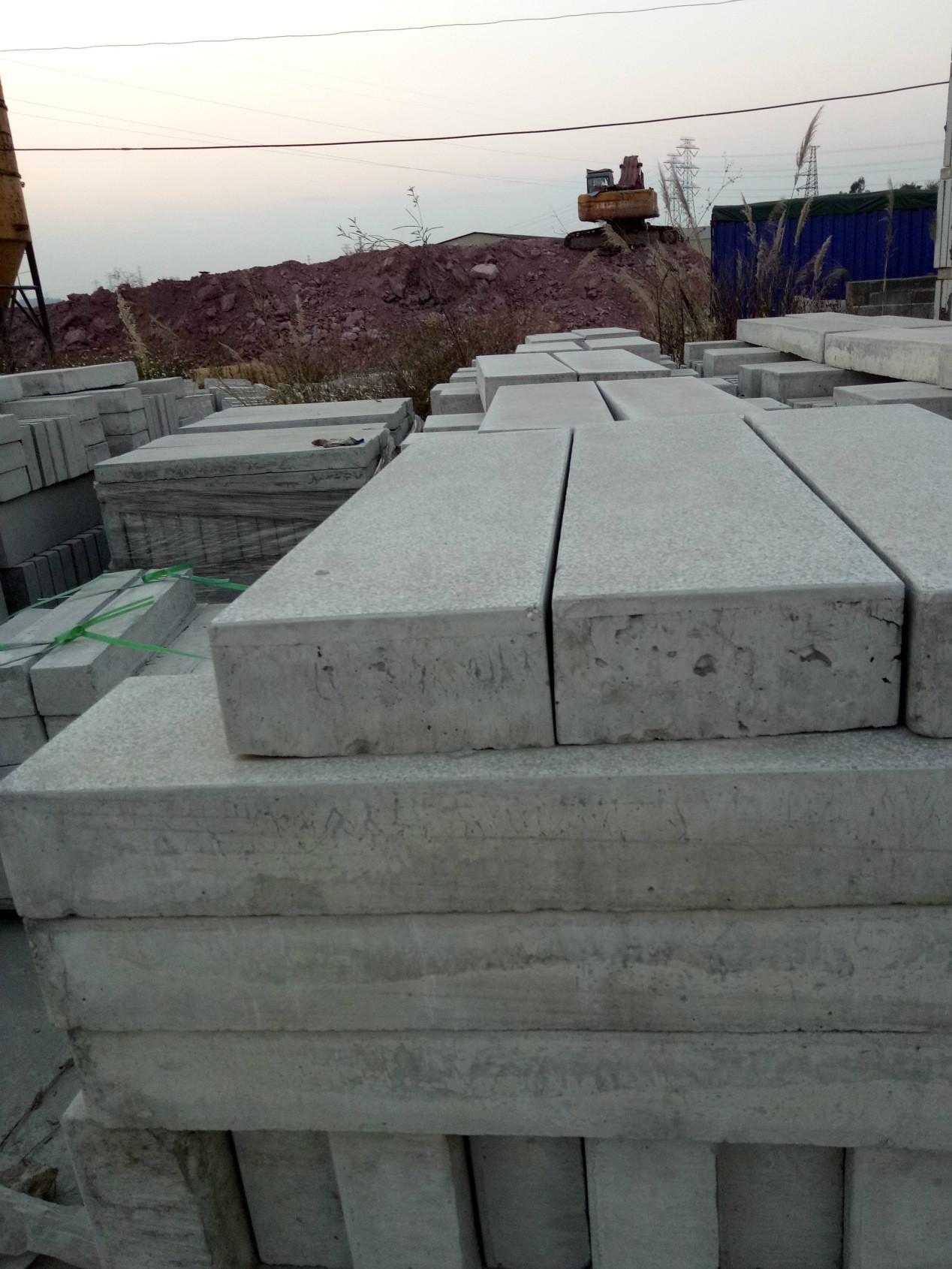

PC bricks

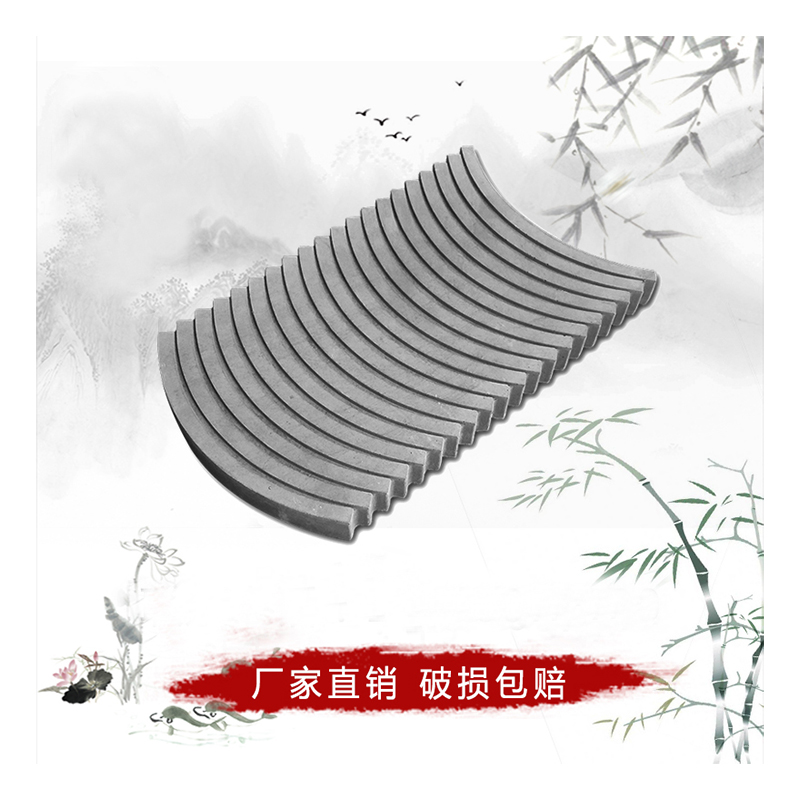

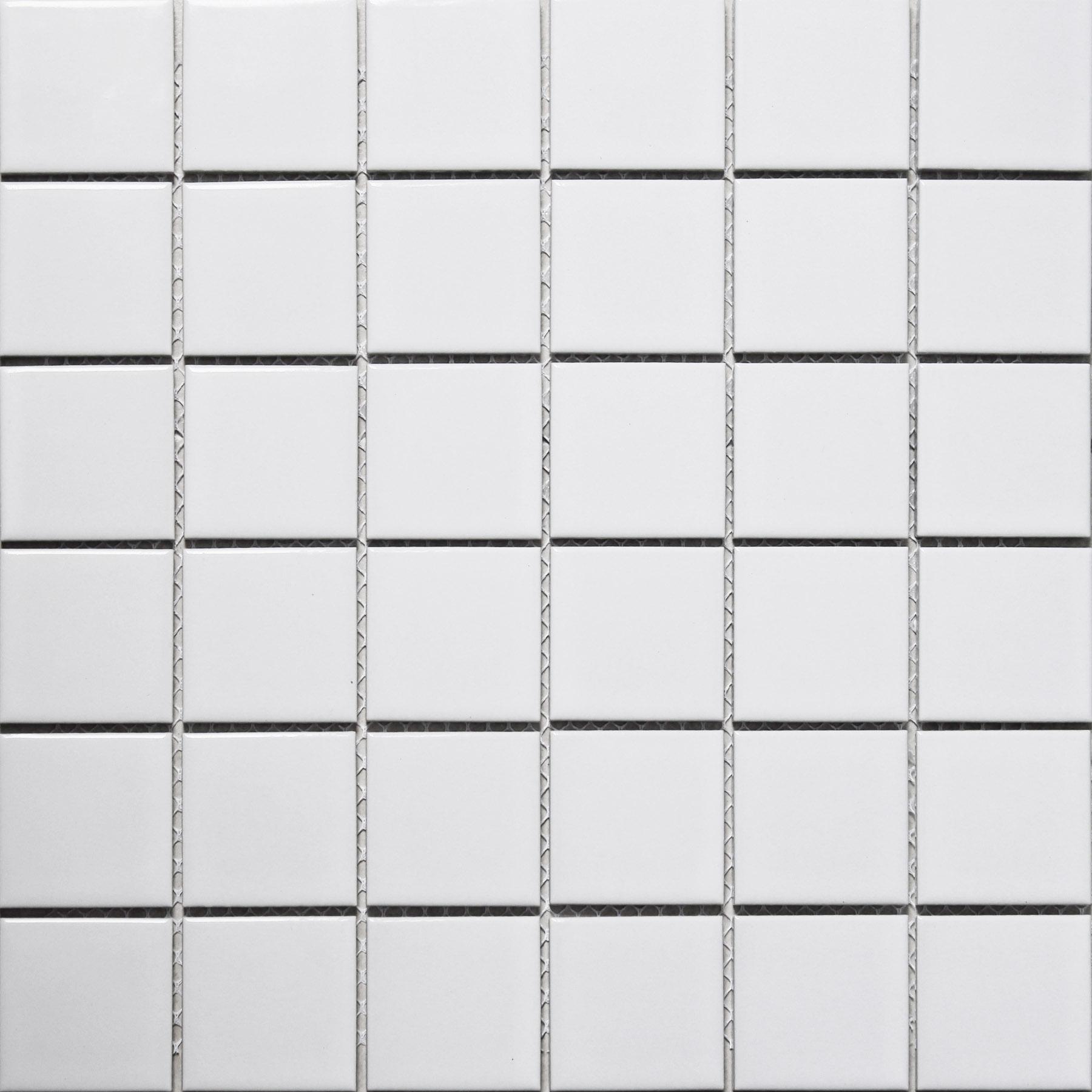

MosaicAncient building tiles
