With the rapid development of modern mechanical technology, the hand-push tile cutting machine has not reached the daily output required by the processing plant for tiles, and the manufacturers of tile equipment have developed CNC tile processing equipment, which the microcomputer numerical control operating system adjusts the size, does not require manual measuring rulers, has high cutting accuracy, and is easy to operate. It is currently the most advanced tile cutting equipment on the market. In the field of tile processing equipment, there are many CNC equipment, so How much does one CNC tile processing equipment cost? Here is a brief introduction for you.

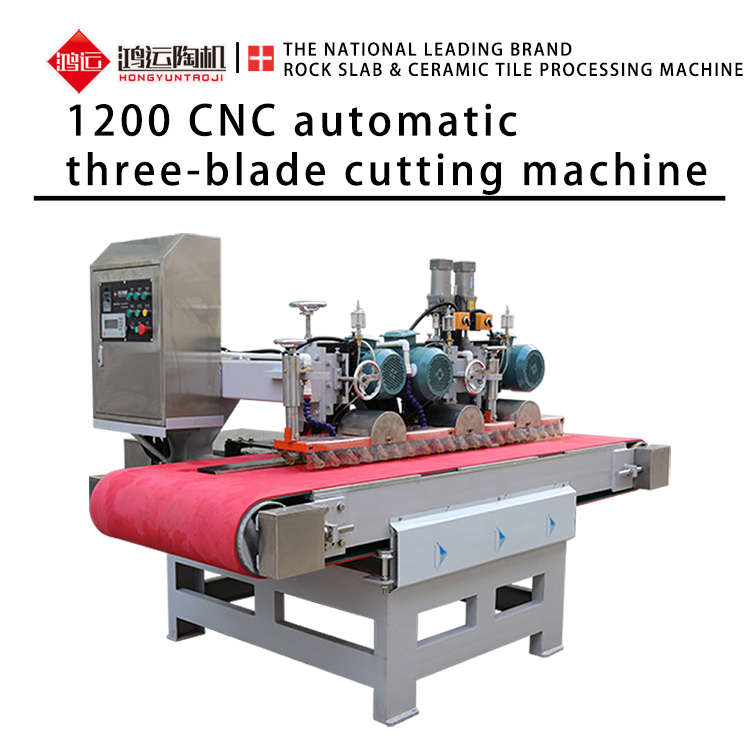

HY-1200 CNC three-blade cutting machine:

  This cutting machine adopts dual-cutting spindle motor power: 4KW, cutting speed is fast, accurate, and effective. It uses the newly designed CNC system to automatically detect faults, frequency conversion, electric lowering of the cutter head, CNC size adjustment, and oil-immersed lubrication. Effective waterproof and dustproof structure, more accurate and stable.

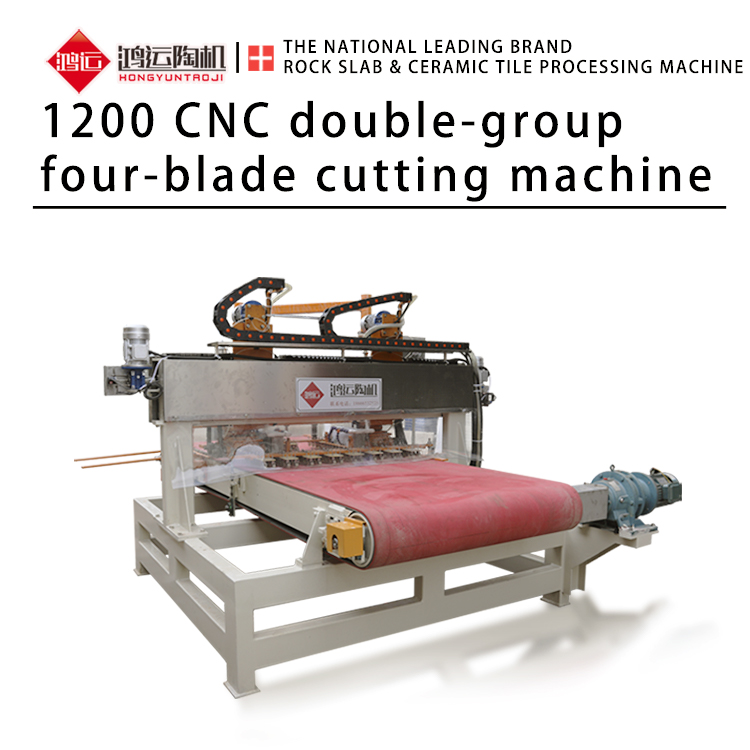

HY-1200 double-group four-blade CNC cutting machine:

  This device has two sets of four cutting blades to cut three sizes simultaneously, fast speed, no dropping corners. Composed of two numerical control systems, one control one cutting group can quickly set the two sizes to be cut, and quickly position and cut. It adopts 5.5KW Jiangsheng motor and a combination of two cutting heads. The first blade cuts half of the thickness, and the second blade cuts off, so that no corners will be dropped. The dual independent numerical control system is convenient and accurate, and the cutting accuracy error is only 0.1mm .

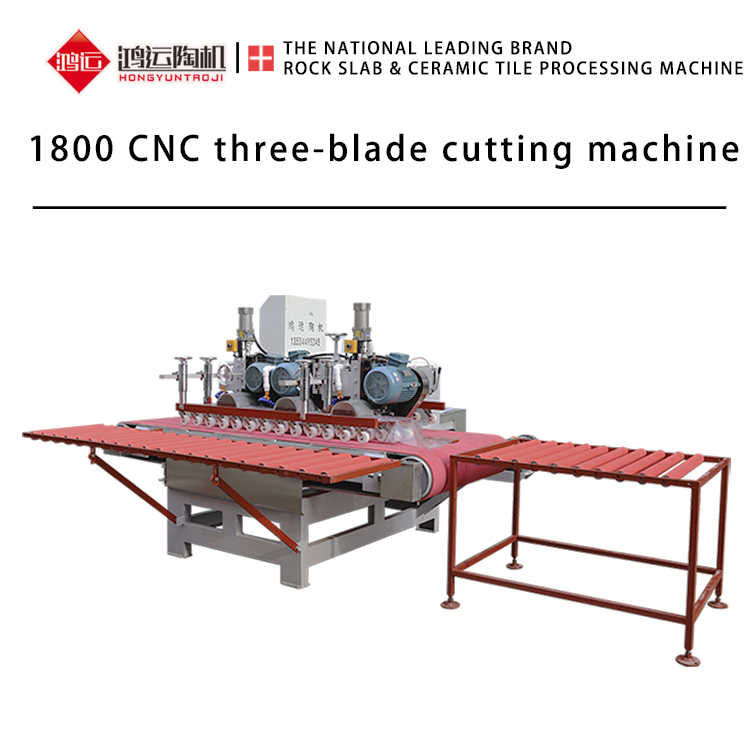

HY-1800 CNC three-blade cutting machine for rock slab:

  This cutting machine can cut rock slabs and tiles up to 1.8 meters in length. It has an electric lifting blade cutter head and can quickly replace the cutting blade. It is easy to refuel and maintain. It is easy to refuel three shafts at the same time. The four-row press wheel cuts large-size or wide plates more stably . A row of movable rollers is added to the outside, which can stably convey and process cutting when cutting ultra-wide and large plates. The cutting spindle adopts Japanese NTN bearings, which is more durable!

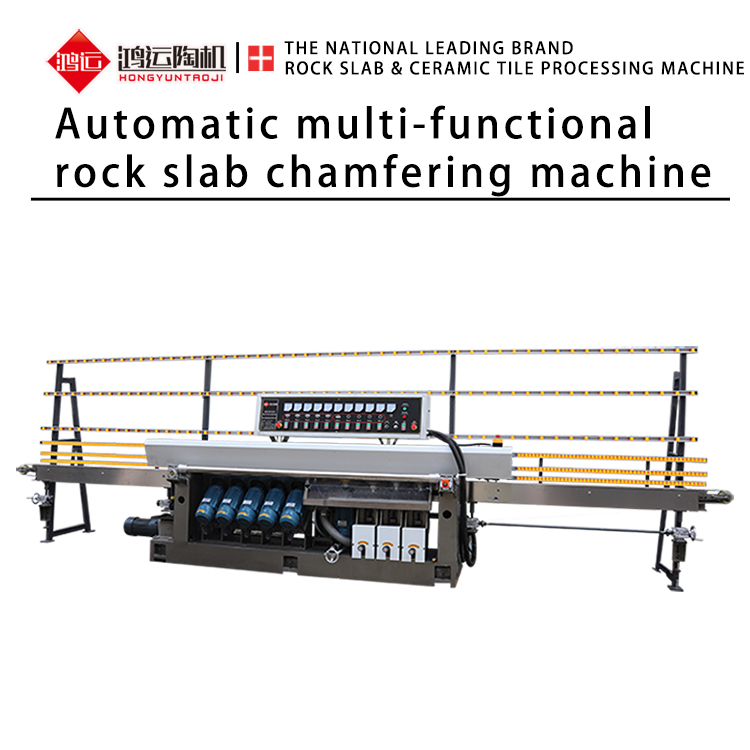

HY-automatic 3200 type rock slab chamfering machine:

  The CNC cutting precision of this equipment is high, and the error is within 0.1mm. The double cutter head does not break the porcelain or drop the corners. The beam adopts H steel structure and the longitudinal device. The rigidity is 2-3 times that of the ordinary square tube. After heat treatment, it is not easy to deform. The front and rear cutter heads use dual 3.0KW motors, and the cutting blade uses: 190mm large cutting blade, which has the best cutting effect. The stop ruler adopts a 500mm super wide reinforced type and is equipped with a rubber strip, which has high accuracy and is not easy to cause damage to the board. The screw adopts TBI, and the oil tank uses an oil-immersed gauge, which is durable and stable. The 7-inch large screen can complete the cutting task as quickly as possible by simply inputting the cutting size.

  Hongyun also has many CNC-type tile processing equipment, which are not listed here. Hongyun Ceramics machinery factory is a manufacturer specializing in the production of various tile processing equipment. It integrates production, sales, installation, training, and after-sales for one-stop service. The enterprise truly realizes the direct transfer from the factory to the customer without any dealer links in the middle, which greatly saves the purchase cost for the customer. If you want to buy tile processing equipment, you can visit the manufacturer or consult our online customer service.About the price of the above products,please directly contact me in Whatsapp:+86 15278353800,I'm willing to service you.
