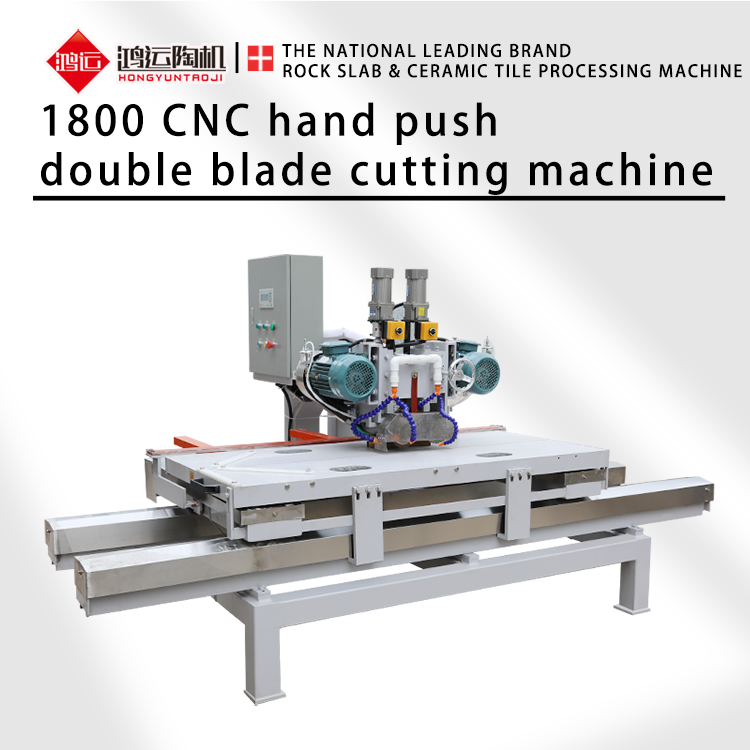

Hongyun’s newly developed hand-push CNC tile cutting machine has a variety of models, mainly adding a CNC operating system on the basis of ordinary manual tile cutting machines, which solves the problems of various cutting sizes, complex changes, and troublesome processing; digital control. The processing precision is high, the price is cheap, the cutting has no size heads, and the cutting effect is good.

The advantages of hand-push CNC tile cutting machine

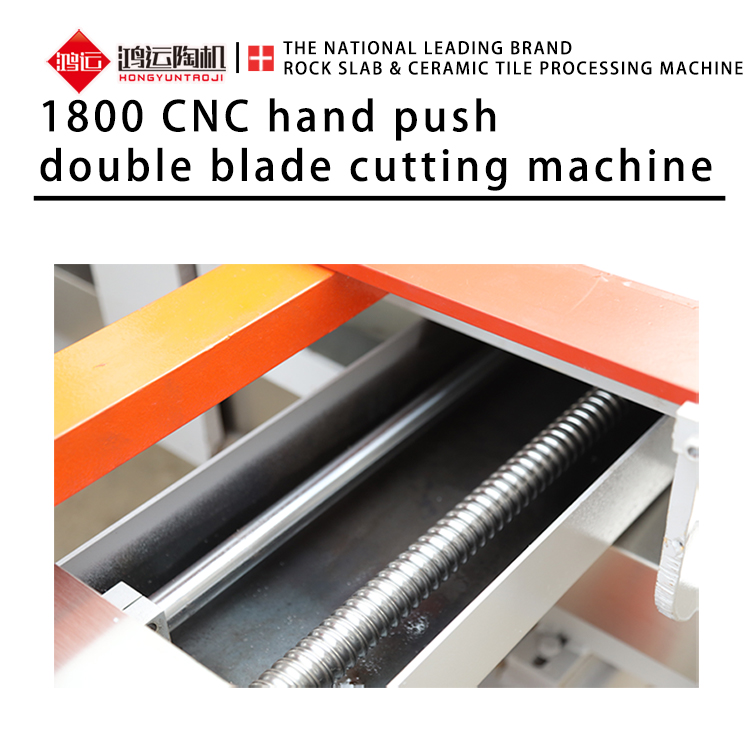

1. The guide rail adopts H steel linear guide, which has high strength, is not easy to be deformed, and has a long service life.

2. The two cutting heads are used for processing. The cutting and trimming finished at one time, which can effectively avoid edge chipping after cutting, and directly cut the original edge effect. The operation is simple, and the cutting does not chip. It is for processing machinery for large board of ceramics.

3. The adjustment size is automatically adjusted by a numerical control system, which is accurate and fast.

4. The products cut by double blades will not chip or drop the porcelain. The cutting efficiency is high and the stability is strong. It is truly realized—one machine with multiple functions.

5. Multi-purpose model, suitable for cutting all kinds of boards such as skirting tile/mosaic/ancient building tiles.

6. The cutting spindle adopts water cooling to reduce the temperature, which makes the spindle more wear-resistant. The machine runs fully automatically, which greatly saves labor.

Hand push CNC cutting machine instructions

　　 1. Prepare tools and maintenance supplies:

　　 A set of allen wrenches, 2 17-19 wrenches, a 30-32 wrench, a barrel of diesel engine oil 18 liters;

　　 2. Connecting water and electricity:

　　 (1) Take 1 inch of water

　　 (2) Wiring needs to be connected: three-phase four-wire, three live wires + one neutral wire (N is the neutral wire)

　　 3. Add diesel oil before starting up:

　　The guide rail oil is fully immersed + the screw rod oil is fully immersed + the oil can is full (the oil can is turned on every day and 1/5 is added)

　　4. the use steps of CNC operating system:

　　 (1) After the wire is connected, turn on the emergency stop, test the machine, and the blade is reversed;

　　 (2) Enter the operation interface

　　 (3) Find: this interface of current position and set position

　　 (4) Press the [SET] key, and after seeing the black background light up, enter the size you want to cut (for example, when cutting 10 cm, it is: 100.000mm, pay attention to three 0 decimal points, don’t make a mistake!)

　　 (5) After inputting the size, press the [ENT] key, and then press the "run coordinate" right arrow

　　 5. The numerical control system data is inaccurate, the recovery method:

　　 The first step: cut a brick at will, measure the size, and then the second step:

　　 (1) Press the ↓ key, turn the page to find the [calibration position] page,

　　 (2) Press the [SET] key, input the measured size just now, press the [ENT] key to confirm, and then press the [] key to confirm.
