Pos: Company > Rock slab processing equipment > 1200 CNC Double-group Four-blade Cutting Machine
< >
  • 20210411152659_68951.jpg
  • 20210411152659_19959.png
  • 20210411152700_33035.png
  • 20210411152700_52364.png

The 1200 CNC double-group four-blade cutting machine is a multi-size cutting machine newly developed by our factory.The machine can simultaneously set two cutter heads by CNC at the same time, and cut three sizes at the same time.The head part is composed of two blades: front blade and rear blade , which has the characteristics of no cracking and efficient cutting. It is especially suitable for processing rock slab bathroom countertops [panel + two side panels] and step of conjoined stairs,one tile can cut in three sizes.This machine has two models : model 1200 and model 1800, and different models can be selected according to different plates, which is especially suitable for rock slab processing plants and ceramic tile processing plants.


1. Technical parameters:



Cutting speed

3-5m/min



Cutting width

10-1200mm

Machinable thickness



6-30mm

Total power

13.5KW

Water consumption

100L/min

Weight



3000kg

Size



3300mmx2800mmx1700mm


2. Equipment display:


The 1200 CNC double-group four-blade cutting machine.

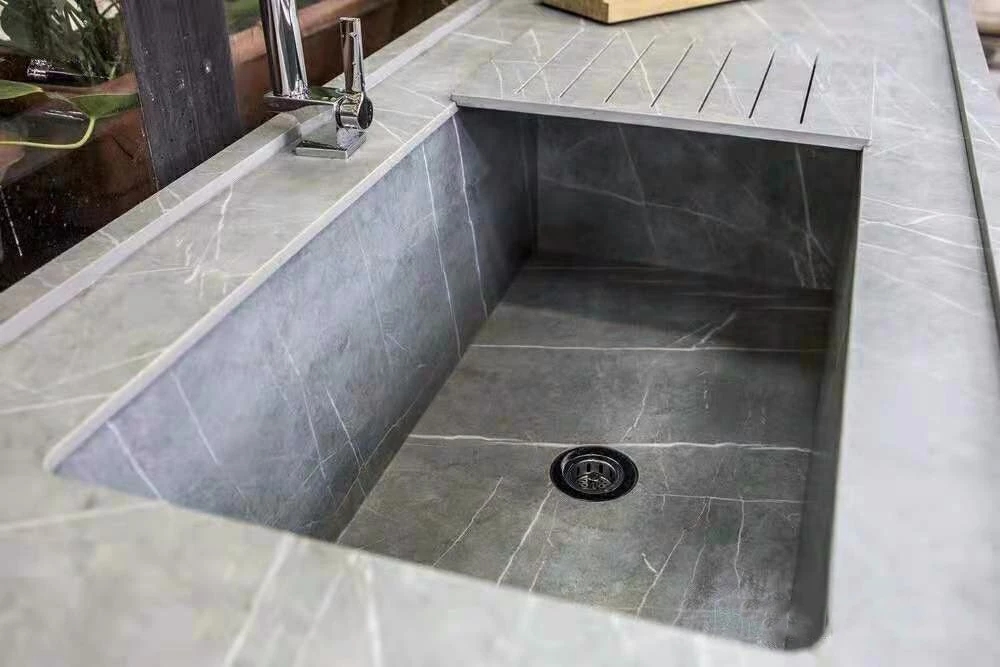

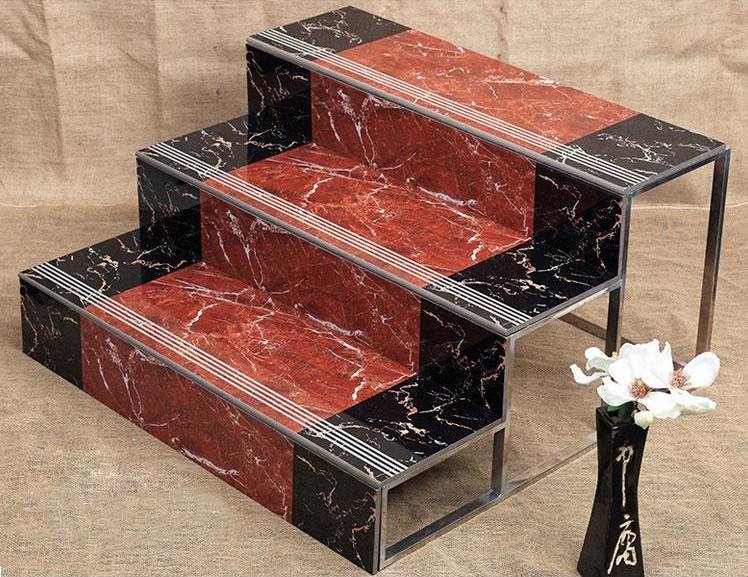

3.The cutting effect:

The cutting effect of 1200 CNC double-group four-blade cutting machine
