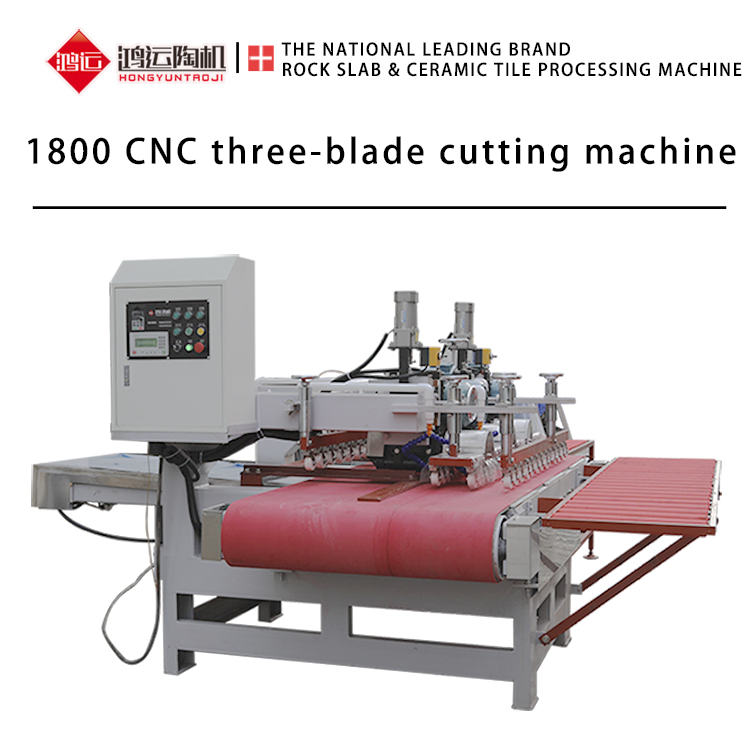

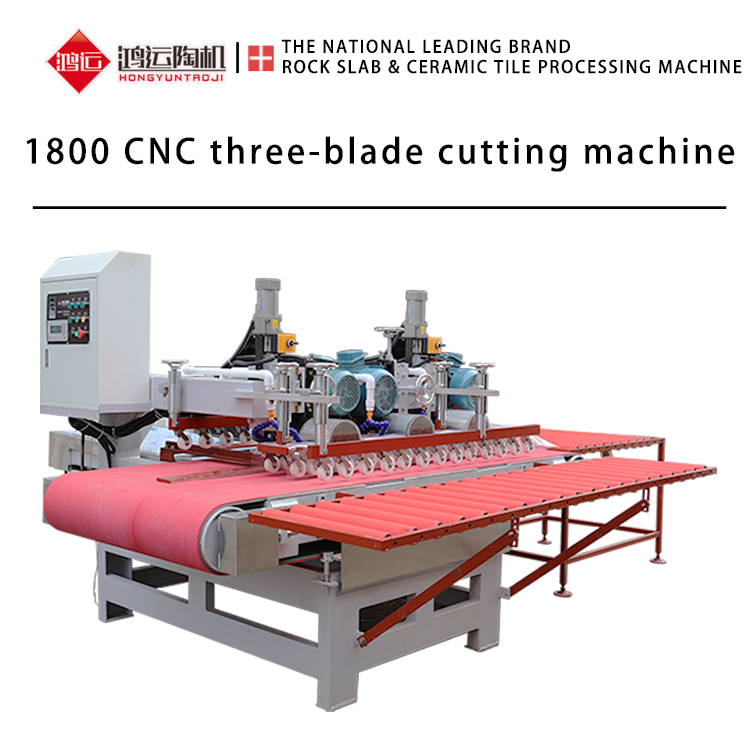

The price of the three-blade CNC tile cutting machine is between RMB30,000 and 70,000. This model is re-developed and upgraded based on the practical experience of ceramic processing plants in the past few years. The most important improvement this time is the use of oil-immersed screw structure. The accuracy and life of the ruler have been increased by more than half. The main feature of the three-blade is that it can cut quickly and repair the collapsed surface. The power of the dual-cutting spindle motor is upgraded to 4KW. The cutting speed can be 35% higher than the traditional CNC cutting machine. The machine is easy to operate. The degree of automation is high, only need to set the required cutting size on the operating plane, you can quickly set the ruler, and all upgraded cutter heads are upgraded to electric lifting cutter heads.

  Three-blade CNC tile cutting machine operation process:

　　1. Before starting the machine, please pay attention to check whether the water has been opened, whether the water volume is large enough, and whether the water volume is sprayed on the cutting blade.

　　2. Check whether the cutting blade has worn out. Generally, the service life of the cutting blade is 400-600 meters, and then check whether the height of the cutting blade and the trimming blade have been adjusted; the special reminder is that the lifting blade should not exceed the maximum pallet stroke!

　　3. Check whether the pressure of the pressure roller is at a normal height. The default height is 5-8mm from the belt (the height is determined according to the thickness of the brick).

       4. The most important step is to check that the red conveyor belt has no deviation. (Inspection standard: the brick must follow the gear ruler as normal. If you leave the gear ruler, the belt deviation needs to be adjusted and the belt can be cut. , Otherwise there will be inconsistencies in the cutting tiles, the size of the head).

　　5. Adjust the cutting speed, the default cutting speed: 10-12; the highest limit cannot exceed: 20; and adjust the relevant cutting size, and then turn on the machine.

　　6. The operator who puts the tiles and cuts must pay attention to whether the tiles follow the ruler during the cutting process and whether they leave the ruler.

　　7. During the cutting process, you cannot press the operation panel randomly. If you encounter an emergency brick breaking situation, press the red emergency stop button.

　　 8. Do not touch the rollers at both ends of the belt with your hands during the cutting process, be careful to pinch your hands, and do not touch the cutting piece.

　　 9. After stopping work, press the emergency stop button; clean up the silt on the belt, and check the positions where the screw rods move and put a little butter on them.
