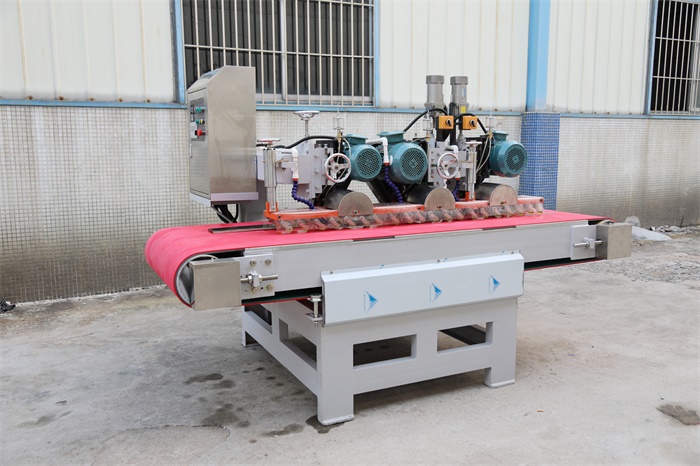

Product introduction of HY-1200 CNC three-blade cutting machine:

   The HY-1200 CNC three-blade cutting machine is re-developed and upgraded based on the practical experience of ceramic processing plants in the past few years. The most important improvement is the use of oil-immersed screw structure, which improves the accuracy and lifespan of the stop ruler more than half, the main feature of the three-blade is that it can cut quickly and repair the broken surface. The power of the dual-cutting spindle motor is upgraded to 4KW, and the cutting speed can be 35% higher than the traditional CNC cutting machine. The machine is easy to operate and has a high degree of automation. Just set the required cutting size on the operating plane, it can quickly set the ruler, and all the cutter heads are upgraded to electric lifting cutter heads.

The advantages of HY-1200 CNC three-blade cutting machine:

  1. Double cutting spindle motor power: 4KW, cutting speed is fast, accurate, and the effect is good.

  2. Newly designed CNC system fault automatic detection function, frequency conversion speed regulation, electric lowering tool head, CNC adjustment size

  3. Oil-immersed lubrication, effective waterproof and dustproof structure, more accurate and stable

HY-1200 CNC three-blade cutting machine operating skills:

  1. Before starting the machine, please pay attention to check whether the water has been opened, whether the water volume is large enough, and whether the water volume is sprayed on the cutting disc;

  2. Check whether the cutting blade has worn out. Generally, the service life of the cutting blade is 400-600 meters, and then check whether the height of the cutting blade and the trimming blade have been adjusted; the special reminder is that the lifting blade should not exceed the maximum pallet stroke!

  3. Check whether the pressure of the pressure wheel is at a normal height. The default height is 5-8mm from the belt (the height is determined according to the thickness of the tiles);

  4. The most important step is to check that the red conveyor belt has no deviation. (Inspection standard: the tile must follow the stop ruler as normal. If it leave the stop ruler, the belt deviation needs to be adjusted, Otherwise there will be inconsistencies in the cutting bricks, and have size head);

  5. Adjust the cutting speed, the default cutting speed: 10-12; the maximum limit cannot exceed: 20; and adjust the cutting size, and then turn on the machine.

  6.The operator who puts the bricks and cuts must pay attention to observe whether the bricks follow the ruler during the cutting process and make sure they will not leave the ruler;

  7. Do not press the operation panel randomly during the cutting process. If you encounter an emergency brick breaking situation, press the red emergency stop button;

  8. Do not touch the rollers at both ends of the belt with your hands during the cutting process, be careful to pinch your hands, and do not touch the cutting blade;

  9. After stopping work, press the emergency stop button;

  10. Clean up the silt on the belt,

  11 Check all the positions where the screw rods move and put a little oil on them.

　　 Foshan Nanhai Hongyun Ceramic Machinery Co., Ltd. is a 14-year-old company specializing in the production of ceramic deep processing equipment. It has always insisted on using high-quality raw materials, advanced production technology and equipment to produce batches of high-quality, durable, safe and reliable products. It has great reputation in china.
