The three-blade CNC tile cutting machine is a new type of automatic tile cutting equipment improved on the basis of the two-blade CNC tile cutting machine according to market processing requirements. It has the advantage of high cutting accuracy, fast speed, high efficiency, good cutting quality, and no tile cracking or dropping corners, straight cutting, quick size adjustment, stable operation, convenient operation, etc. The tile cutting machine will be maintained after use to extend its service life, so how to maintain the three-blade CNC tile cutting machine?

  How to maintain the three-blade CNC tile cutting machine

  1. The cutting machine uses high-temperature diesel engine oil. The three-blade cutting machine has three oil cups. Before starting up every day (calculated as 8 hours of work), add half a cup of oil to the oil cup, (add it to the oil cup and observe the oil cup switch whether it is turned on and whether the oil flows into the cutting shaft).

  2. The lifting motor pallet often needs to lift the cutter head. Please add a little oil to the gap on both sides before use. When lifting the cutter head, the screws on both sides need to be loosened and then lifted. After adjusting the height, pay special attention to the lock Tighten the screws.

  3. The default first blade of the cutting head is: 1.6mm thickness cutting blade, the middle blade is: V5 trimming blade, and the third blade is: 1.9mm thickness cutting blade. It is recommended to use the original cutting blade.

  4. The gear rod screw is an oil-immersed method, and the oil tank is checked every six months to see if there is any oil soaking the screw rod.

  5. Do not move the first cutting blade left and right, and the third cutter head cutting shaft screw for the cut machine that has been debugged. (The trimming blade can be adjusted in height depending on the situation, but the cutting head must not be adjusted randomly) .

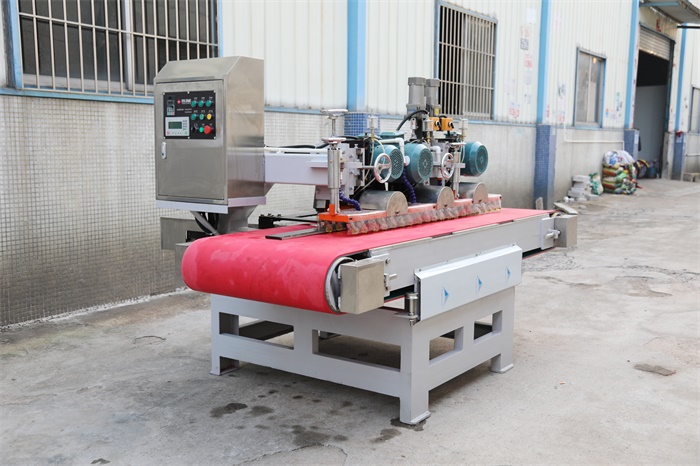

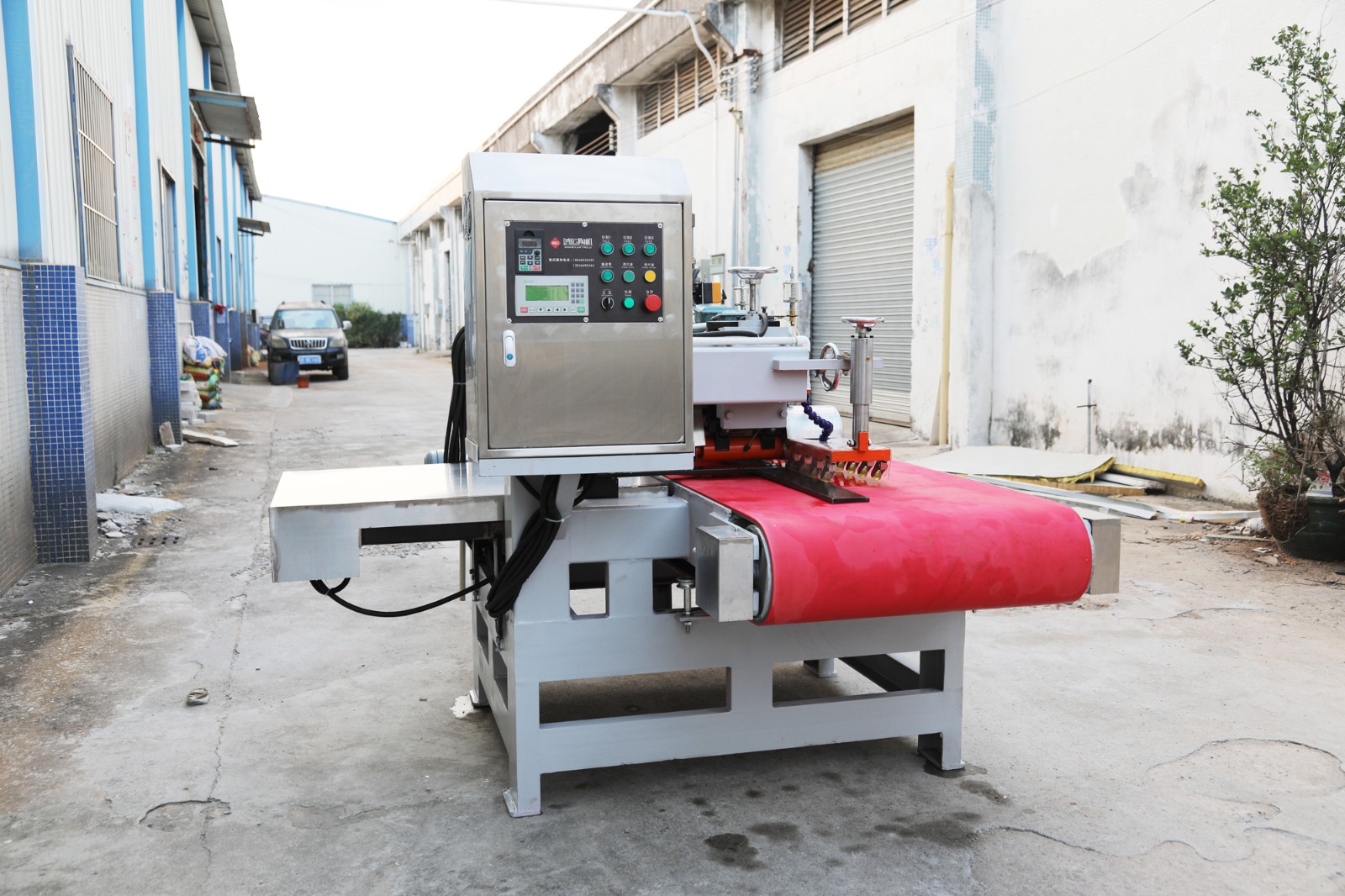

  The Hongyun 1200 CNC three-blade cutting machine is re-developed and upgraded based on the practical experience of ceramic processing plants in the past few years. The most important improvement this time is the use of oil-immersed screw structure, which increases the accuracy and life of the ruler by half. Above, the main feature of the three-blade is that it can cut and repair the surface quickly. The power of the double-cutting spindle motor is upgraded to 4KW. The cutting speed can be 35% higher than the traditional CNC cutting machine. The machine is easy to operate and has a high degree of automation. Set the required cutting size on the plane, you can quickly fix the ruler, and all the upgraded cutter heads are upgraded to electric lifting cutter heads. One CNC three-blade cutting machine can replace the efficiency of five hand-push cutting machines. The processing cost is extremely low, the cutting is stable, and the porcelain does not collapse or drop corners. It is one of the indispensable equipment for the rock slab / ceramic tile deep processing plant.
