Tile processing equipment is a processing machine for processing tiles, different tile processing equipment can cut different types of tiles.And, the processing methods of each tile processing equipment are also different. The following will explain with the fourteen-head arc polishing machine and the manual tile cutting machine.

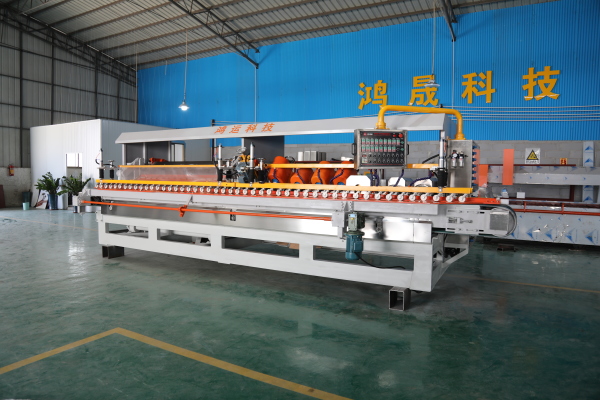

　　 Fourteen-head arc polishing machine:

　　 1. Put the cut tiles on the conveyor belt of the arc polishing machine and start the conveyor belt. When grinding the arc, start the trimming motor, 30 degree motor, 60 degree motor, and then start 14 grinding head motors and cylinders. The tiles reach the position of the grinding head, and the grinding heads polish the arcs one by one.

　　 2.45 degree polishing: first start the fine-tuning motor, and then start the two 45 degree motors. When the tiles enter the polishing position, the grinding heads will polish them at 45 degrees one by one.

　　3. Polished anti-slip groove: It can be processed at the same time as the arc, or it can be processed separately. When processing separately, trim the edges first, and then turn on the slotting motor to open the anti-slip grooves. If the anti-slip groove is synchronized with the grinding arc, first trim the edge, then start the grooving motor, and then start the 30-degree and 60-degree motors. After the tiles reach the polishing arc polishing position, put them down for polishing.

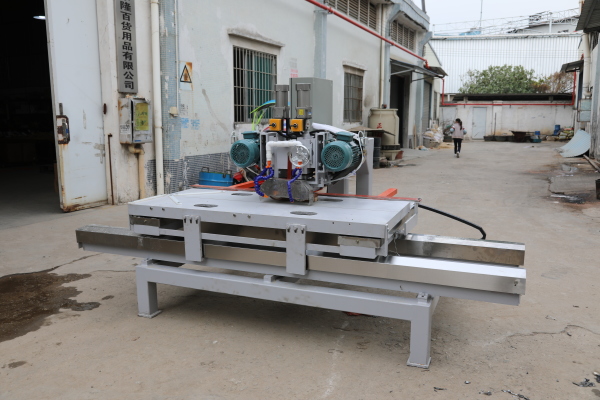

　   Manual tile cutting machine:

　　 1. First, install the bracket on the left side of the cutting machine, install the size positioning plate, and measure the required size. When dealing with small tile sizes, you need to place a cut tile on the left side, that is, the distance between the right side of the tile and the blade. If you want to cut larger tiles, you don't need to put the tiles on the left. You can directly place the tiles on the platform and push the tiles forward to cut.

　　2. Triangular cut: first install the triangular template on the platform of the tile cutting machine and fix the position. Whether cutting triangle or diagonal tiles, it is easy to cut. The premise is that Audio-Technica must be installed. Drill a space on the platform and fix it with screws.

       Since tile processing equipment is one of the more commonly used equipment for processing tiles, in order to make the performance of the equipment more stable, in addition to operating according to the operating rules, the equipment must be cleaned and maintained during use. Such tile processing machine will be used longer, the processing will be more stable, and the processing effect will be as good as ever.For more information click our official website:Foshan nanhai hongyun ceramic machinery company.If you are interested in this machine,please contact me in Whatsapp or email(whatsapp number:+86 152 7835 3800;email:hymachinery00@gmail.com)
