Pos: Company > Rock slab processing equipment > HY-14 Grinding Head Arc Polishing Machine
< >
  • 20210411152432_78374.png
  • 20210411152432_78662.png
  • 20210411152432_30103.png

  The automatic 14 grinding head arc polishing machine is a heavy-duty arc polishing machine newly designed by our company,which is fully automatic and operating intelligently,with a luxurious top-level configuration. After years of in-depth practical experience in ceramic processing plants, it has been improved and optimized. The processing technology is mature and stable, greatly improve the production efficiency. This machine is mainly used in stone and ceramic tile processing plants for processing: Stair tiles, skirting lines, 45 degre chamfering and polishing, anti-slip grooves, straight edges, back chamfers, etc. It is a typical multi-function and multi-purpose machine.


1. Main functions of the machine:

Functions: Round edge grinding, 45 degree beveling and chamfering, Edge trimming, Down chamfering,  Anti-slip groove slotting, L-shaped edge groove slotting.

Purpose: Stair tiles, Skirting tiles, V-shaped tiling on the 45 degree inner wall, Inner wall side groove.


2.Product features:

1. Automatic lifting grinding head;

2. Pneumatic lifting roller;

3. The main spindle adopts imported spindle bearings;

4. Fault diagnosis function to ensure stable operation of the equipment;

5. Automatic oil supply system;

6. Large grinding head is more durable and avoid frequent replacement.


3.Our advantages:

1.Top ten of manufacturer for ceramic tile/stone processing equipment,the quality is guaranteed;

2. Pay attention to the performance stability of the equipment and strictly control the quality;

3. One-to-one on-site installation and training services;

4. The manufacturer independently produces the core components, and the after-sales maintenance cost is low;

5. Good after-sales service, maintain your love machine for life.


4. Technical parameters:


Number of grinding heads

14

Diameter of Polishing head



110mm

Edging wheels number

7

Diameter of edging

200mm

Machinable width

90-1200mm

Machinable thickness



6-30mm

Processing speed

5-10m/min

Conveyor belt width



350mm

Number of anti-slip grooves



3-4

Diameter of slotting blade

110mm

Rated power

43KW

 Weight



6000Kg

Size



6700*2300*1850mm


5. Equipment display:

14 grinding head arc polishing machine_78374.

5.The processing effect:

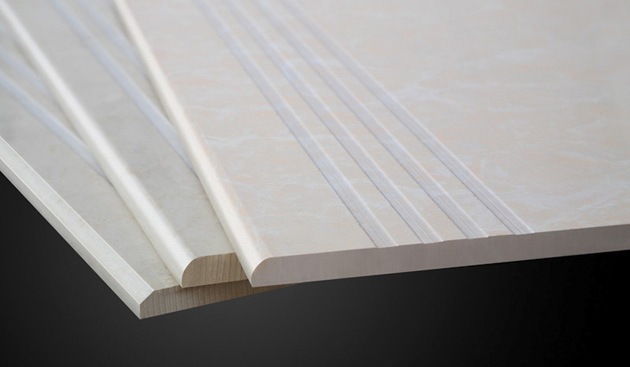

The processing effect of 14 grinding head arc polishing machine1

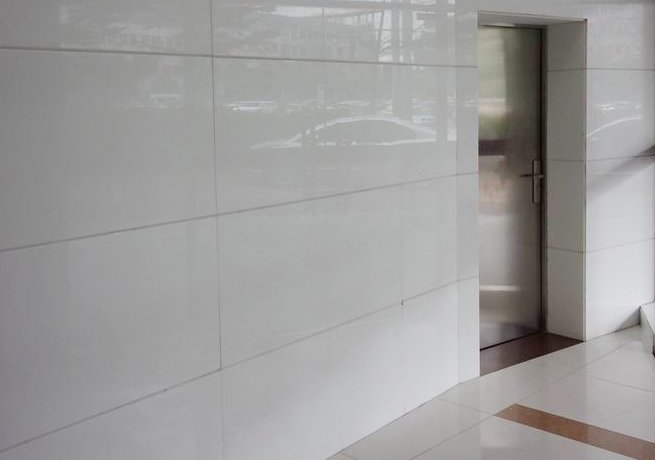

The processing effect of 14 grinding head arc polishing machine2

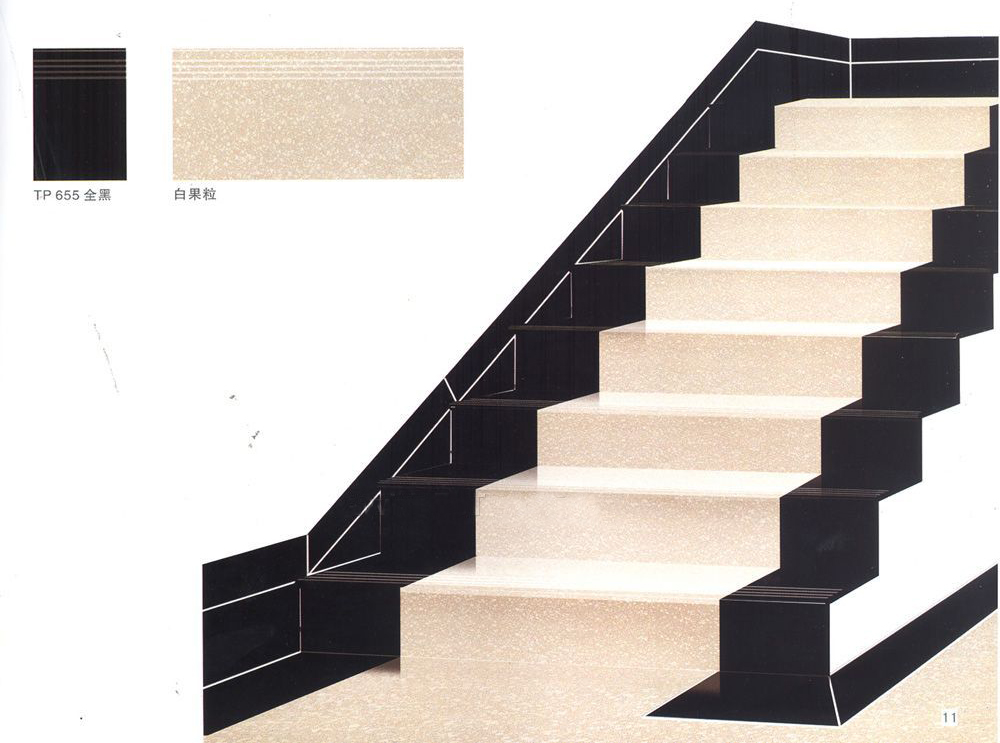

The processing effect of 14 grinding head arc polishing machine3jpg
