The 1200 CNC double-blade multifunctional cutting machine is specially researched and developed by our factory for construction sites/tile shops with small processing volume.


1. The performance and characteristics of product:

(1)It has the multi-functions of cutting , edge trimming , slotting, edge grinding and chamfering ;

(2)When using the cutting function, cutting and trimming are completed at the same time , no secondary cutting is required , no cracking and dropping corners ;

(3)CNC size adjustment , which is simple and fast ;

(4) It can be used to process other different process requirements by rotating one of its cutting heads.


2. Technical parameters:


Longitudinal cutting length

1200mm

Diameter of saw blade



110-180mm

Horizontal cutting length



600mm

Machinable thickness

6-20mm

Rated power



6kw

Weight

450kg

Size



2.2*1.4*1.5m


3. Equipment display:

1200 CNC Double-blade Multifunctional Cutting Machine.

4.The processing effect:

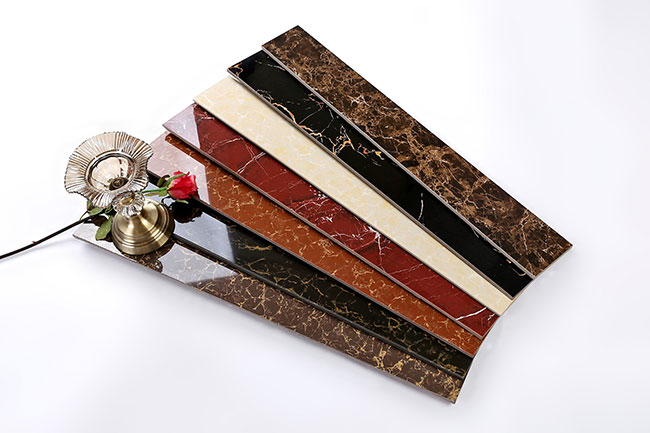

The processing effect of Multifunctional Cutting Machine1

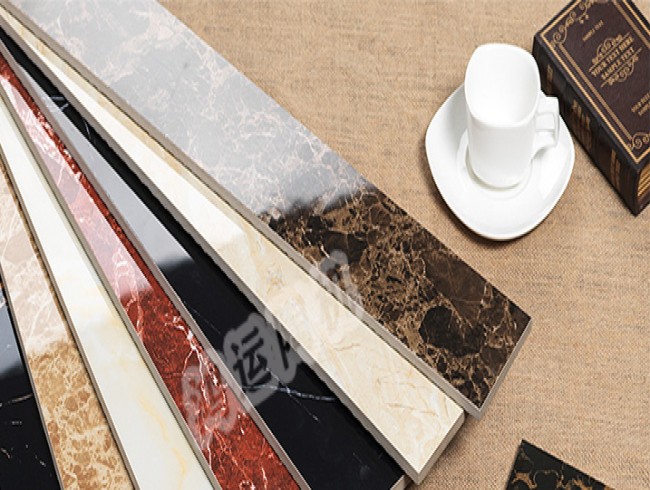

The processing effect of Multifunctional Cutting Machine2
