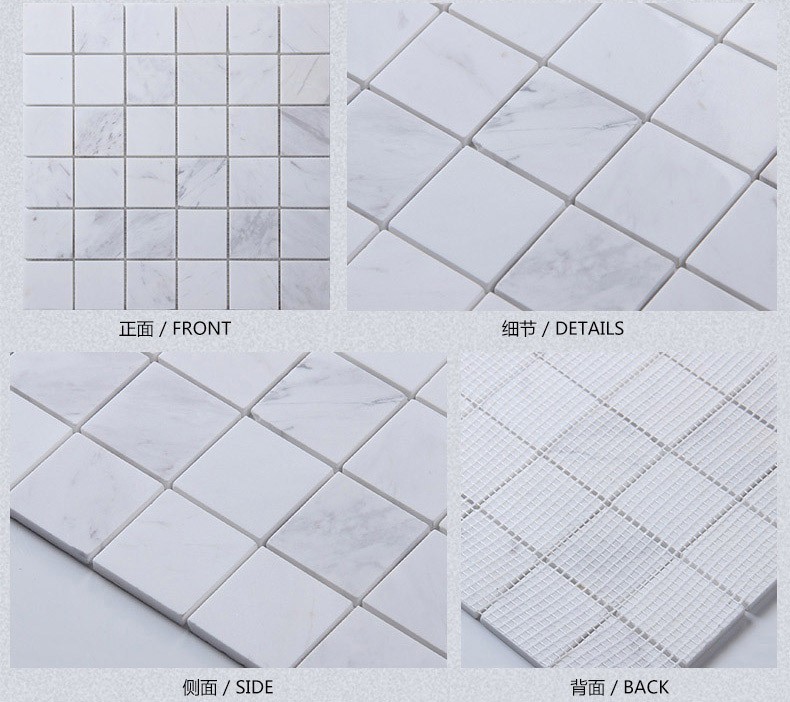

Waterjet mosaic is a process of cutting stone with high-pressure water flow. Computer control can ensure that the edge of cutting is neat and beautiful. Use waterjet to cut stones of various colors into pre designed shapes, and then use special glue to splice them together. Although the pattern of waterjet mosaic is good-looking, the processing is complicated, so how do the waterjet mosaic machine process? What are the steps.

Operation steps of water jet mosaic machine:

1. Drawing: import JPG format picture into CAD, and then draw the outline of "waterjet mosaic" by using all available functions such as arc and rectangle in CAD.

2. Parts: because the material of water jet mosaic is ceramic tiles, the size is limited, so the larger parts should be divided into several sections for processing.

3. Block taking: as the water jet mosaic is composed of multiple colors of stone, ceramics and other materials, each color should be extracted separately, and the extraction process is called block taking in the industry.

4. Typesetting: it's easy to understand. It is to take out the parts arranged in the provisions of the material inside, convenient machine tool cutting.

5. Add tool compensation: compensation tool loss material error, can make product gap smaller.

6. Connection: connect multiple parts in series, so that the machine will not cut one by one, improve the cutting speed, and control the cutting sequence conveniently.

7. File saving: the last step is to save multiple plates separately and convert them into files that can be recognized by the water jet machine tool to achieve the purpose of cutting.

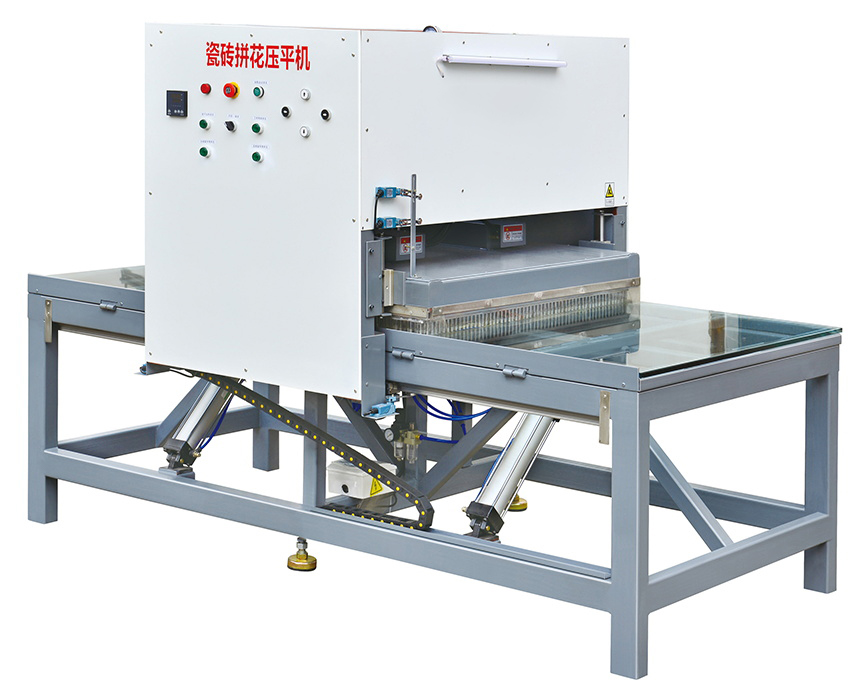

  Hongyun ceramic cutter series is different from others in design, material selection and precision manufacturing. Its cutting quality of accuracy, lightness, durability and no edge collapse has been widely verified by thousands of ceramic manufacturers and processing units. All cutting machines have passed strict technical testing and cutting test before leaving the factory, which is the confidence guarantee for you to choose cutting machine!
