Pos: Company > Products > Ceramic Tile Flattening Machine (Hydraulic Type)
< >
  • 1300型压平机.jpg

The ceramic tile flattening machine (Hydraulic Type) is specially designed for the waterjet parquet processing factory.This machine flattens the parquet vertically through the hydraulic system, while increasing the heating device, which greatly shortens the parquet pasting time and makes the parquet leveling is flat and of high efficiency and quality.It is a necessary product for the waterjet processing factory.


1. The performance and characteristics of product:

(1) Adopts tempered glass as the platform and thousands of screws as thimble, precise positioning during the pressing process;

(2) Adopts hydraulic control system, combined with limit switch, precisely control flattening force and has stable performance;

(3) Adopts gear transmission, the operation is flexible and stable, the noise during the processing is lower, Which greatly improve the production efficiency and reduce labor intensity.


2. Technical parameters:



Maximum working area

Maximum  flattening force

flattening speed

Diameter of guide rod

Motor power



Motor speed



Net weight

Size

1000×1000mm

(1000#)

5T

2500mm/s

Φ20-180mm

037/380

KW/V

1470

r/min

340

KG/KGS

(1000#)

2.7×1.2×1.7 m

(1000#)

1200×1200mm

1200#

360KG/KGS

1200#

2.7×1.6×1.7 m

1200#


3.Equipment display:

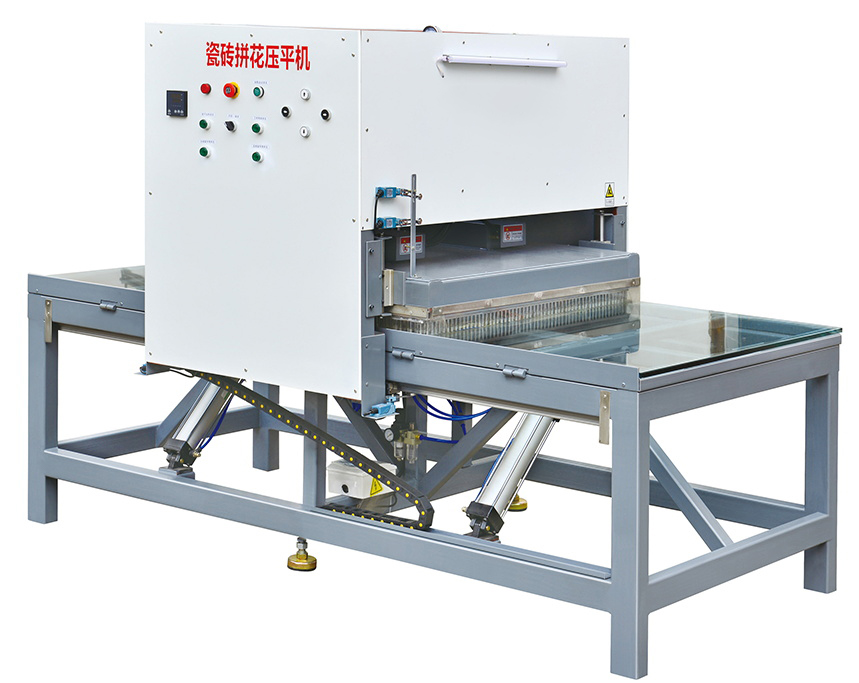

Ceramic Tile Flattening Machine (Hydraulic Type)

4.The processing effect:

Waterjet mosaic1

Waterjet mosaic2
