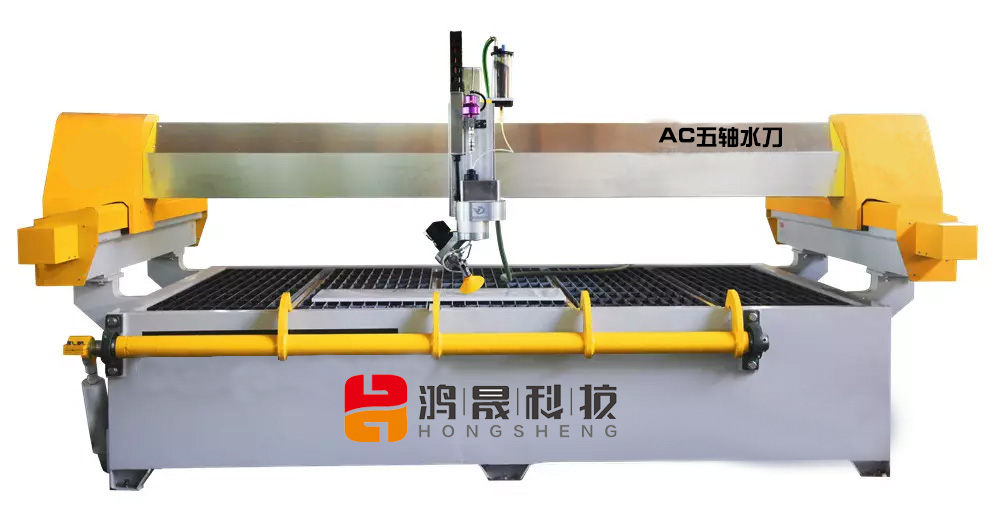

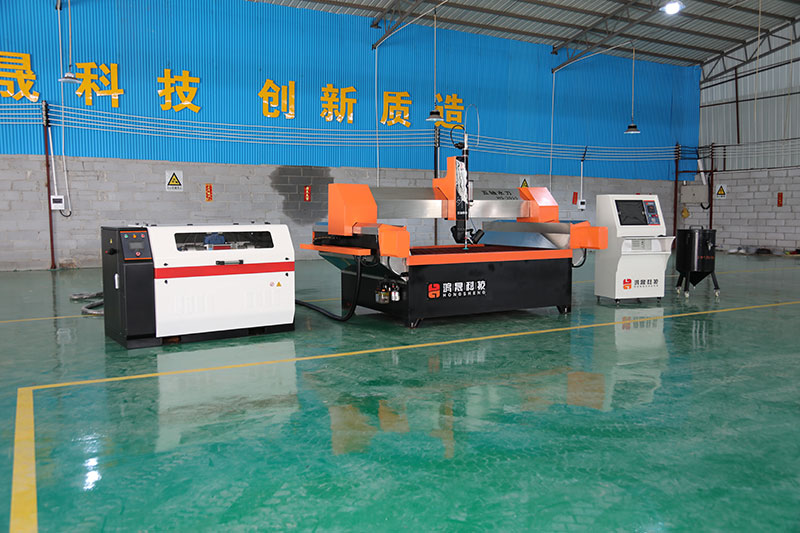

Product introduction of HS-4020 AC five-axis waterjet cutting machine:
The AC five-axis waterjet cutting machine can be used to cut the rock slab at an angle of 45 degrees to achieve seamless splicing; and the original German imported laser scanner is mounted on the cutting spindle, and the large-size plate is scanned and positioned before cutting.It can ensure the high-precision processing requirements of waterjet cutting. The advantage of the five-axis waterjet is that the cutting plane is perfect, and it can cut and process various complex process drawings. Our cutting platform adopts imported screw guide rails, XY uses oil-immersed rails, and an effective dust-proof and waterproof design structure to ensure that the accuracy and stability reach high-performance standards!
The advantages of HS-4020 AC five-axis waterjet cutting machine:
1. AC spindle head
It is mainly used for rock cutting, the cutting angle of the cutter head is 0-60 degrees
2.Ultra-high pressure supercharger
The high-pressure assembly adopts the Flow standard, the high-pressure cylinder adopts the ACC high-pressure cylinder imported from the United States, and the 3/8 high-pressure pipe imported from Europe.
3.CNC control system
Brand-new CNC control system, waterjet system uses Shanghai Weihong system.
The main technical parameters:
1. AC cutting angle: 0-60 degrees
2. cutting platform: 4000mm*2000mm
3.cutting speed: 800-2500mm/min
4. Total power: 40KW
5. Water consumption: 3.7L/minute
6. Equipment weight: 5000kg
7. equipment size: 5500mm*3500mm*1700mm
Foshan Nanhai Hongyun Ceramics Machinery Co., Ltd. is one of the early research and development rock slab processing equipment supplier. Its products: water jet cutting machine, rock slab 45 degree chamfering machine, rock slab CNC bridge cutting machine, rock slab special-shaped grinding machine,arc polishing machines, CNC three-blade cutting machines, hand-push CNC cutting machines, etc., provide one-stop sales, installation, training and guidance for door-to-door installation service across the country, dedicated one-to-one after-sales tracking, let you use it at ease, worry-free!
