Hongyun 1200 hand-push CNC double-blade cutting machine—small ceramic tile cutting machine use method
time : 2021-06-12 16:41 views : 29

   The advantages of HY-1200 hand-push CNC double-blade cutting machine:

  The double-blade CNC cutting machine adds a special trimming blade to the single-blade foundation. It can be cut directly with trimming, no cracking, no dropping corners, etc. Adopts H steel support + linear guide, the error is within 0.1mm and the service life can reach more than 6 years, it is one of the essential products of the ceramic tile processing factory.


  Instruction manual of 1200 type hand push CNC double-blade cutting machine:

  1. Tools and maintenance supplies to be prepared:

  A set of allen wrenches, 2 17-19 wrenches, a 30-32 wrench, a barrel of diesel engine oil 18 liters;

  2. Connecting water and electricity:

  (1) Take 1 inch of water

  (2) Wiring needs to be connected: three-phase four-wire, three live wires + one neutral wire (N is the neutral wire)


  3. Add diesel oil before starting up:

  The guide rail oil is fully immersed + the screw rod oil is fully immersed + the oil can is filled (the oil can is turned on every day, fuel 1/5 a small amount)

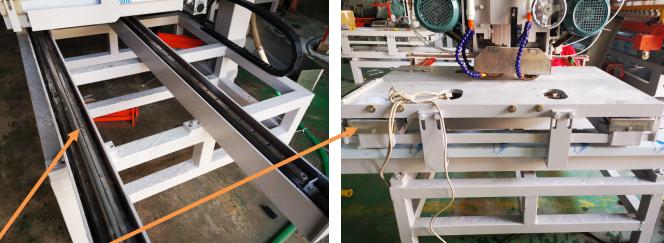

Oil-immersed guide rail

  4. the use steps of CNC operating system:

  (1) After the wire is connected, turn on the emergency stop, test the machine, and the blade is reversed;

  (2) Enter the operation interface

  (3) Find: this interface of current position and set position

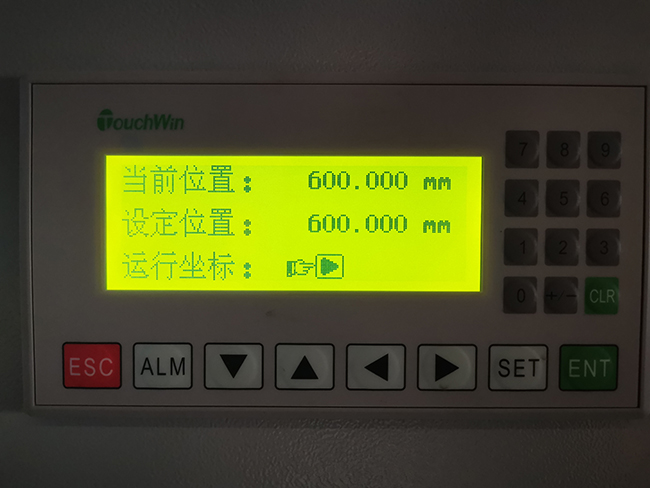

CNC control system

  (4) Press the [SET] key, and when you see the black background light up, enter the size you want to cut (for example, when cutting 10 cm, it is: 100.000mm, pay attention to three 0 decimal points, don’t make a mistake!)

  (5) After inputting the size, press the [ENT] key, and then press the "running coordinate" right arrow []


  5. When the numerical control system data is inaccurate, the recovery method:

The first step: cut a piece of brick arbitrarily, measure the size, and then the second step is as follows:


  (1) Press the ↓ key, turn the page to find the [calibration position] page,


  (2) Press the [SET] key, input the measured size just now, press the [ENT] key to confirm, and then press the [] key to confirm.
