Because the automatic ceramic tile 45 degree cutting machine is a relatively advanced equipment in the ceramic tile processing industry, the mechanical installation and debugging are not as simple as the traditional ceramic tile cutting machine. The following introduces the installation and debugging methods of the automatic ceramic tile 45 degree cutting machine.

Installation instructions of automatic ceramic tile 45 degree cutting machine:

1. Before using the automatic ceramic tile 45 degree cutting machine, horizontal debugging must be carried out. Put the level meter on the surface of the conveyor belt, adjust the angle screw, and adjust it vertically and horizontally until the cutting machine is horizontal.

2. After adjusting the level, tighten the angle adjusting nut.

3. After adjusting the level, it must be installed on the flat concrete floor to minimize the vibration of the machine.

Debugging skills of automatic ceramic tile 45 degree cutting machine：

1. Turn on the power according to the automatic ceramic tile 45 degree cutting machine or local indication voltage, and check whether all electrical components in the electrical cabinet are in standby state.

2. When using it for the first time, you need to idle the spindle for 30 minutes and the conveyor belt for 10 minutes to see if it is stable. If all goes well, put it into production again.

3. Turn on the power supply of conveyor belt and cutter head, and check whether the running direction of conveyor belt and spindle is correct.

4. after the blade is installed, tighten the spindle nut and adjust the cooling water nozzle. The best direction is that the lower point of the water column is on the tangent point of the blade cutting brick.

5. Start the power supply of the cutter head, check whether the rotation direction of the spindle is consistent with that of the conveyor belt, and pay attention to the blade leaving the conveyor belt before starting the power supply, so as not to cut off the conveyor belt.

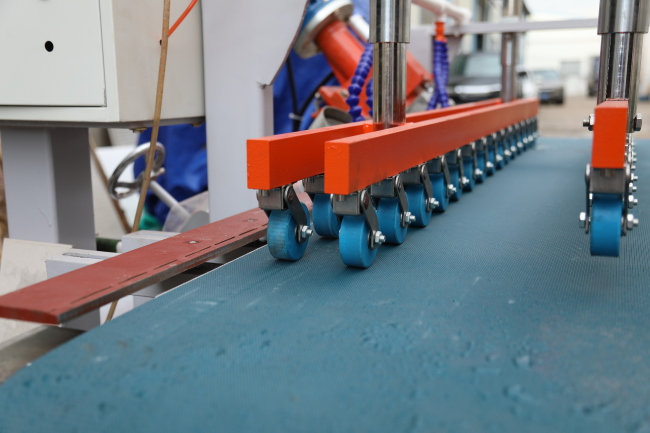

6. Before debugging the machine, put a brick on the conveyor belt, start the conveyor belt, and adjust the pressure roller until the brick pressing of the ceramic tile cutting machine is stable. It should be noted that the side brick near the positioning plate should be straight.

7. Use the control switch and lifting button on the electrical cabinet to adjust the depth of brick cutting.

   Automatic ceramic tile 45 degree cutting machine can cut slot, using digital size control, cutting accurate, fast, high efficiency, suitable for large-scale cutting requirements. It is very convenient to adjust the size. Just input the corresponding number on the control panel, and the baffle will automatically locate to the required cutting size. The operation is simple and convenient, which solves the problem of complex cutting size. It is the representative of advanced ceramic tile cutting equipment, and deeply loved by ceramic tile processing manufacturers.
