The 1200 multifunctional cutting machine is a small-duty multifunctional processing equipment with small size and multiple functions.It is a necessary machine for on-site processing.1200 multifunctional cutting machine is a hand-push multifunctional and multi-purpose cutting machine. The main functions are: cutting, slotting, chamfering, rounding, dry hanging, etc.The machine has two options of three-phase power and two-phase power.


1.The performance and characteristics of product:

(1)One machine with multiple functions: cutting, grooving, 45-degree chamfering, round edges grinding, and dry-hanging grooving; widely used in the processing of stairs tiles, anti-slip grooves for stairs, etc.;

(2) Adopt multifunctional rotatable cutter head, which is portable;

(3)Adopts(international standard) guide rails.It is not easy to deform and has a longer service life, which is 3-5 times of ordinary guide rails.


2.  Technical Parameters:


Longitudinal cutting length



1200mm

Horizontal cutting length

600mm

Machinable thickness

120mm

Diameter of Saw blade



110-180mm

Diameter of Saw blade hole



20mm

Rated power

2.2KW

Weight

250KG

Size



2000*1350*1250mm


3.  equipment display:

1200 Multifunctional Cutting Machine

4.The processing effect:

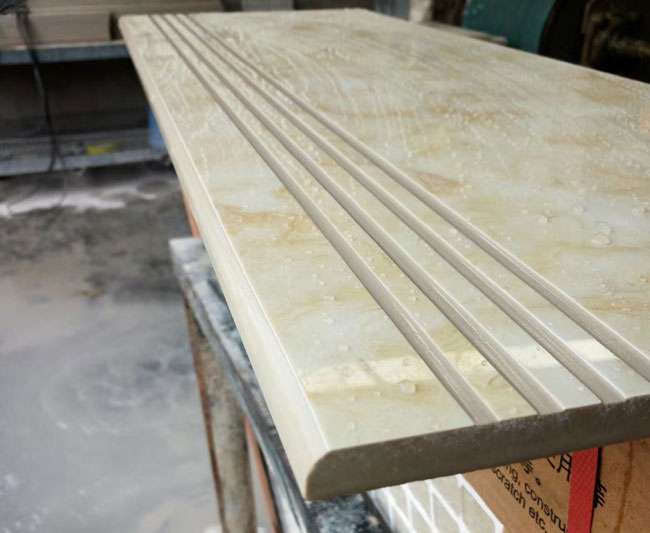

slotting and round edge grinding effect

The processing effect of maultifunctinal cutting machine
