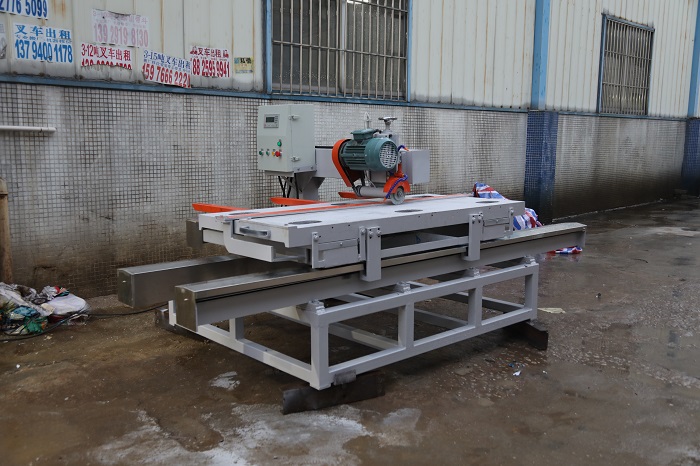

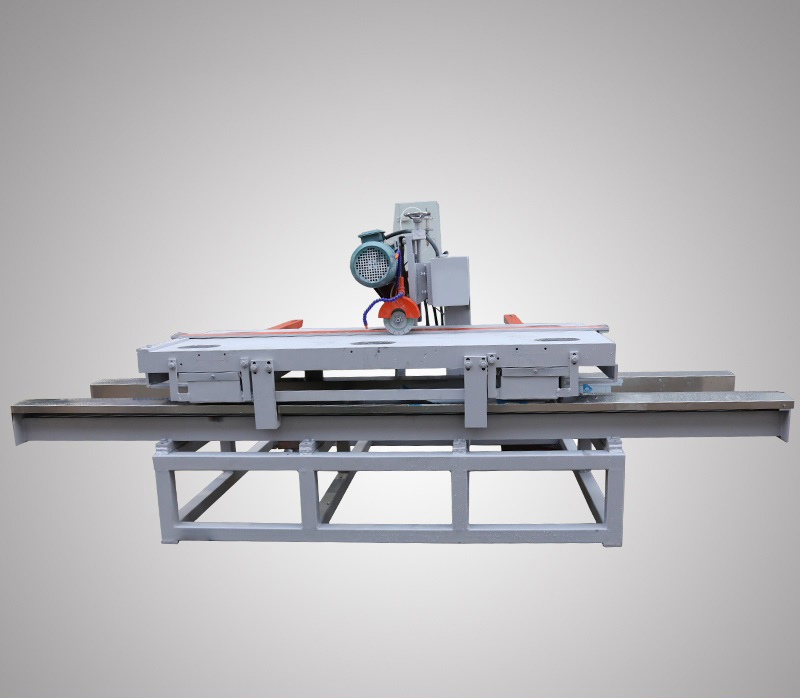

HY-1.8m hand push CNC cutting machine product introduction：

    The 1.8-meter CNC cutting machine is the latest development of our company. The maximum cutting size can reach: 1.8 meters. It adopts H steel support + linear guide, and then uses Oil-immersed guide. The accuracy can reach an error within 0.1mm, and the life span can reach more than 6 years. , Is one of the must-have products for ceramic tile processing factories ;

HY-1.8 meters hand push CNC cutting machine advantages：

  1. The guide rail adopts H steel linear guide, which has high strength, is not easy to be deformed and has a long service life.

  2.The two cutting heads are used for processing. The cutting tape is trimmed at one time, which can effectively avoid edge chipping after cutting, and directly cut the original edge effect. The operation is simple, and the cutting does not chip. It is a for processing machinery for processing large ceramic tiles.

  3. The size adjustment is automatically adjusted by a numerical control system, which is accurate and fast.

HY-1.8 meters hand push CNC cutting machine operating skills:

  1. Tools and maintenance supplies to be prepared:

A set of allen wrenches, 2 17-19 wrenches, a 30-32 wrench, a barrel of diesel engine oil 18 liters;

  2. Connecting water and electricity part:

  (1) Take 1 inch of water

   (2)Wiring needs to be connected: three-phase four-wire, three live wires + one neutral wire (N is the neutral wire)

   3. Add diesel oil before starting up:

  The guide rail oil is fully immersed + the screw rod oil is fully immersed + the oil can is filled (the oil can is turned on every day, plus 1/5 a small amount)

   4. The use steps of CNC operating system:

   (1) After the wire is connected, turn on the emergency stop, test the machine, and the blade is forward and reverse;

  (2) Enter the operation interface

  (3) Find: this interface of current position and set position

  (4) Press the [SET] key, and after seeing the black background light up, enter the size you want to cut (for example, when cutting 10 cm, it is: 100.000mm, pay attention to three 0 decimal points, don’t make a mistake!)

  (5) After inputting the size, press the [ENT] key, and then press the "run coordinate" right arrow

   5. When the numerical control system data is inaccurate, the recovery method:

   The first step: first cut a brick at will, measure the size, and then the second step

  (1) Press the ↓ key, turn the page to find the [calibration position] page,

   (2) Press the [SET] key, input the measured size just now, press the [ENT] key to confirm, and then press the [] key to confirm.
