In the tile processing machinery and equipment, the CNC tile cutting machine is a relatively advanced type of equipment, which has the advantage of rapid cutting processing. Since it is a relatively advanced equipment that is naturally different from ordinary tile cutting machines in terms of operation, what are the operating methods of CNC tile cutting machines?

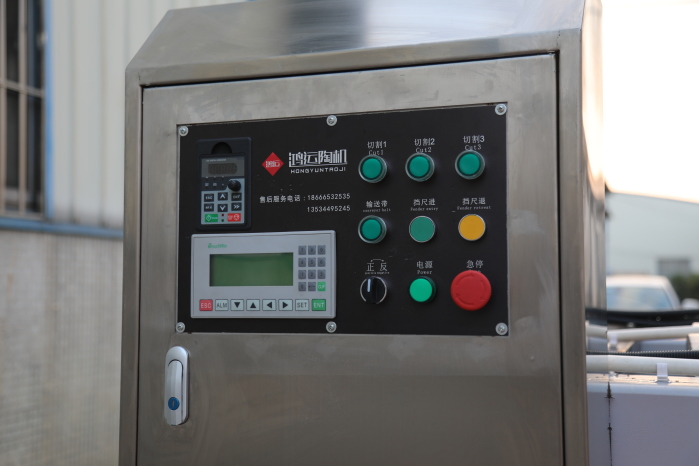

      1. Enter the size you want to cut on the CNC panel of the CNC tile cutting machine, the size guiding plate will automatically adjust to the required position, after adjusting the size, adjust the inverter to the ideal state you want to process, and then place the tile on the conveyor Cut on the tape. The cutting accuracy of the CNC tile cutting machine can reach 0.01 mm, the smallest can be cut into a one-centimeter wide tile, and the largest can be cut into a 1.8-meter-large tile.

　　2. The installation size is a cutting blade with a diameter of 120-130 mm, a hole diameter of 20 mm, and a thickness of 1.8-1.9 mm. The cutting speed of the CNC tile cutting machine is 5-6 meters per minute. Because it is a half-cut at the front and a half-cut at the back, it has the advantages of no chipping, no corner drop, fast cutting speed, high processing accuracy and good effect. Now it has basically become a must-buy automatic cutting equipment for customers and friends who open tile processing plants.

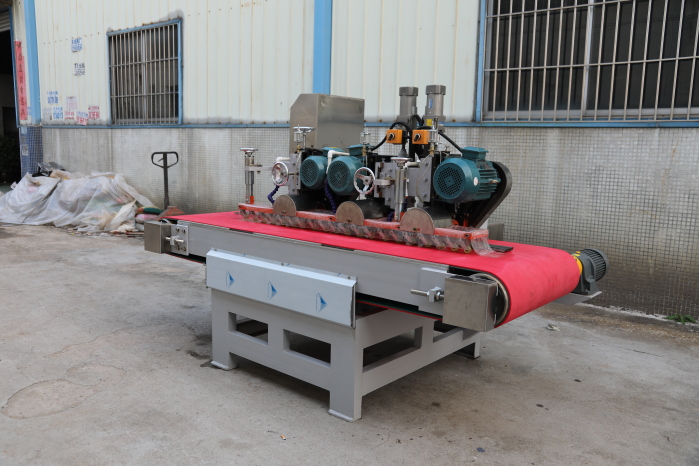

　　 CNC tile cutting machine is a new type of cutting equipment improved on the basis of the front and rear knife automatic cutting machine. It solves many problems in the tile processing industry such as high cost of workers, unskilled operations, slow speed, small size of processed products, and large diagonal errors. Two sets of spindle cutting, 4KW motor drive, using blades above 130mm, using the latest electric hydraulic circulation system; the positioning part adopts imported linear guides and Taiwan, imported ball screw high-precision servo system, stable operation, high precision, and size error Less than 0.1 mm, easy to operate. Using a fully computerized numerical control system, it can be quickly adjusted to the required cutting size within 5 seconds, no manual measuring ruler is required, only enter the required size.
