It is known that ceramic tile processing equipment is a tool for processing ceramic tiles. The common processing methods in ceramic tile processing industry are: cutting, chamfering, grinding straight edges, slotting, arc polishing, stair steps, skirting line, waist line, corner of inner and external corner wrapped column, 45 degree chamfering on wall, dry hanging ,water jet mosaic, etc. The chamfering technology of ceramic tile processing equipment is introduced below.

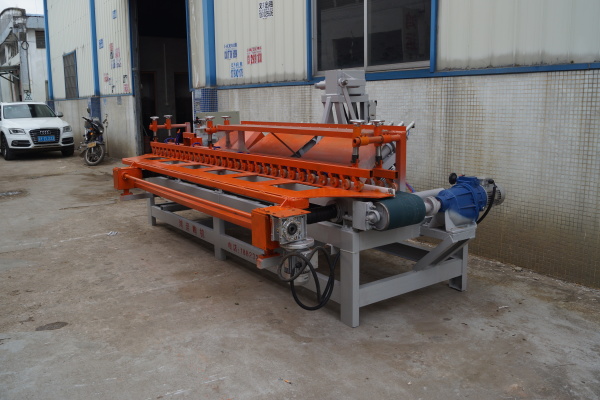

The chamfering process of ceramic tile processing equipment is the common 45 degree chamfering polishing, that is, two 45 degree tiles are pchamfered and then combined to form V-shaped tiles for wall tiling, inner corner45 degree chamfering and 45 degree back cutting， As ying ang yang corners, Begonia angle, mainly used in the corner of the wall. It is a traditional way of dealing with the angle, which can be used for yang corner. It is worth mentioning that the 45 degree chamfer does not need to chamfer to 45 degrees, but the angle of about 30 degrees is chamfered, so that the tiles pasted directly will have gaps. (if both corners are cut into 45 degrees, the tiles will be a right angle, so that the tiles will have no space directly.) Then use to fill the binder. When processing ceramic tile, pay attention not to wear the tile too thin, so as to avoid crack in the joint in the later stage. The ceramic tile chamfering process mainly uses arc polishing machine, ceramic tile chamfering machine, multifunctional ceramic tile cutting machine, and hand push inner corner chamfering machine to process.

The advantages of chamfering technology are mainly safety protection, arc mitigation and right angle reduction of damage caused by collision. When tiling, it is simple, labor-saving, time-saving and material saving. Tiles or stones do not need to be chamfered when turning. The decoration is exquisite and bright. The corner surface is smooth and the line is straight, which can effectively ensure the edge is straight and the decorative angle is more solid. The color is various, can match the same color, make the brick face and the edge line consistent, the color can match to form the contrast.
