    The 12 polishing heads small arc polishing machine is developed by us for small ceramic tile processing factories and tile shops to do on-site processing.The small model has a great effect and can process stair tiles, skirting lines, and internal wall grooves and so on .


1.Performance and characteristics of product:

(1) Multi-functions: round edges grinding , edge trimming, down chamfering, L-shaped grooves slotting, anti-slip grooves slotting, etc.;

(2) This machine adopts double swing arm processing, stable operation, no vibration, and low noise;

(3) This machine adopts CNC control to adjust the size, with high accuracy and simple operation.


2.Technical parameters:

Number of polishing heads



12

Diameter of Polishing head

90mm

Number of edging wheels

4

Diameter of edging

150mm

Machinable width



90-1200mm

Machinable thickness

6-30mm

Processing speed



3-4m/min

Conveyor belt width

300mm

Number of anti-slip grooves



3-4

Diameter of slotting blade

110mm

Rated power



22KW

Weight

6000Kg

Size



4.3*2.1*1.75m


3.Equipment display:

12-head small size arc polishing machine

  4.The processing effect:

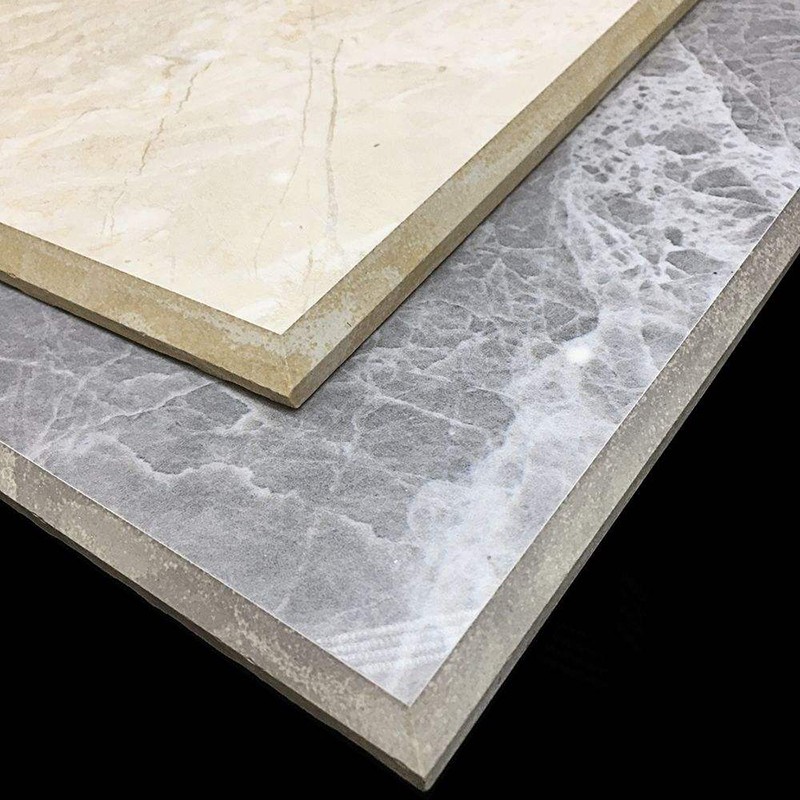

    processing effect1

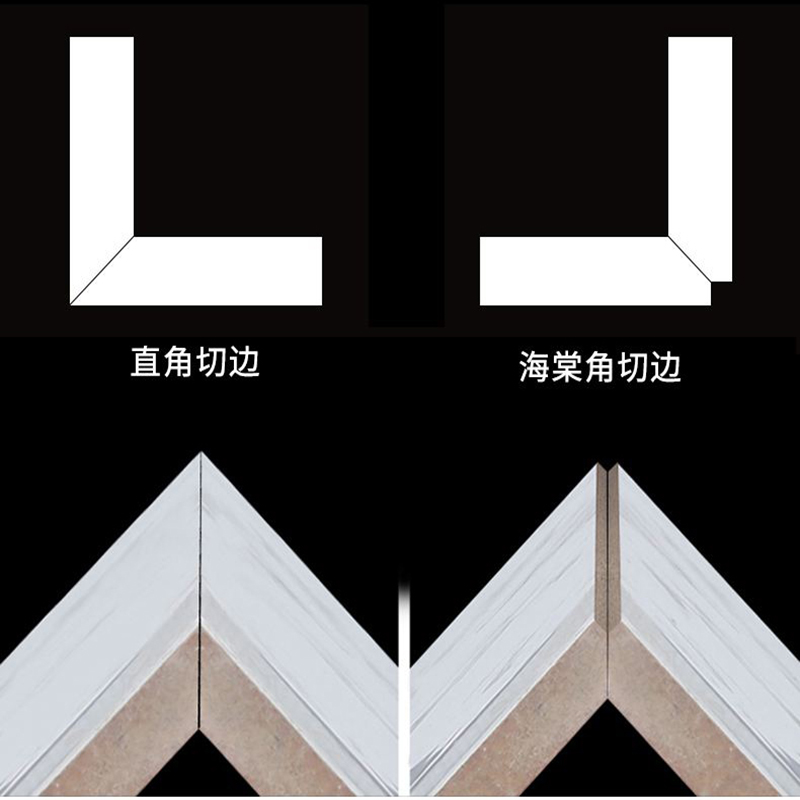

processing effect2
