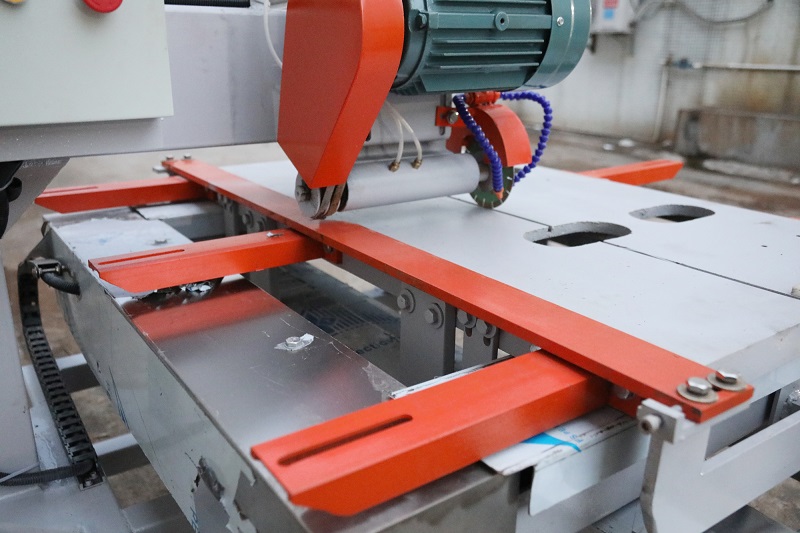

A ceramic tile cutter is mainly composed of cast iron platform, cutting accessories, welding base, rail guard, bearing steel track, supporting ruler, dustproof safety guard, pure copper motor, water injection pipe, height adjustment wheel, needle valve oil cup, front and rear adjusting wheels and rotating shaft. It has the functions of cutting, edge grinding, diagonal cutting, beveling, grooving, line grinding, 45 degree angle grinding and so on.

Composes parts of tile cutter:

　　1. Cast iron platform: an integrated casting platform with thick material, which can clamp the stone cutting, push and pull smoothly, and make it thicker.

　　2. Bearing steel track: H-steel linear guide is adopted, which has high strength, is not easy to be deformed, and has a long service life.

　　3. table top ruler: table top ruler improves cutting stability and accuracy.

　　4. Needle valve oil cup: It can lubricate the machine and run more smoothly and durable.

　　5. Safety cover: a reinforced layer of protection cover is non-slip and does not fall off, and the safety effect is good.

　　6.Pure copper motor: The national standard copper core high-power motor is selected to drive the cutter to cut stably, with good heat dissipation and strong durability.

　　7. Water injection pipe: Equipped with a thick pipe sprinkler head, which can flexibly adjust the direction of spraying water to ensure dust-free cutting.

　　8. Convenient adjustment handwheel: Install the adjustment handwheel, with high adjustment accuracy and flexible adjustment of the cutting depth.

　　 Hongyun ceramic mechanical tile cutter is made of iron, suitable for dry cutting, wet cutting of all kinds of stone, building material tiles, granite, marble, cement board, red brick, refractory brick, etc. It is an indispensable tool for home decoration. The cutter can cut stones to different depths, and can process stones less than 8cm (customizable), which can turn waste into treasure, greatly save stone resources, and also help protect the environment. Various types of stones can be mechanically cut and processed with high efficiency, and the effective use of small stones makes the production cost lower.
