The tile cutter is a commonly used cutting tool for processing tiles. It has the characteristics of high cutting efficiency, high speed, high precision, and no chipping and no corners. Everyone knows that the cutting blade of the cutter is easy to be damaged if it is used for a long time or improperly used. If it is damaged, it needs to be replaced. How to replace the blade of the tile cutter?

     Replacement method of tile cutter blade:

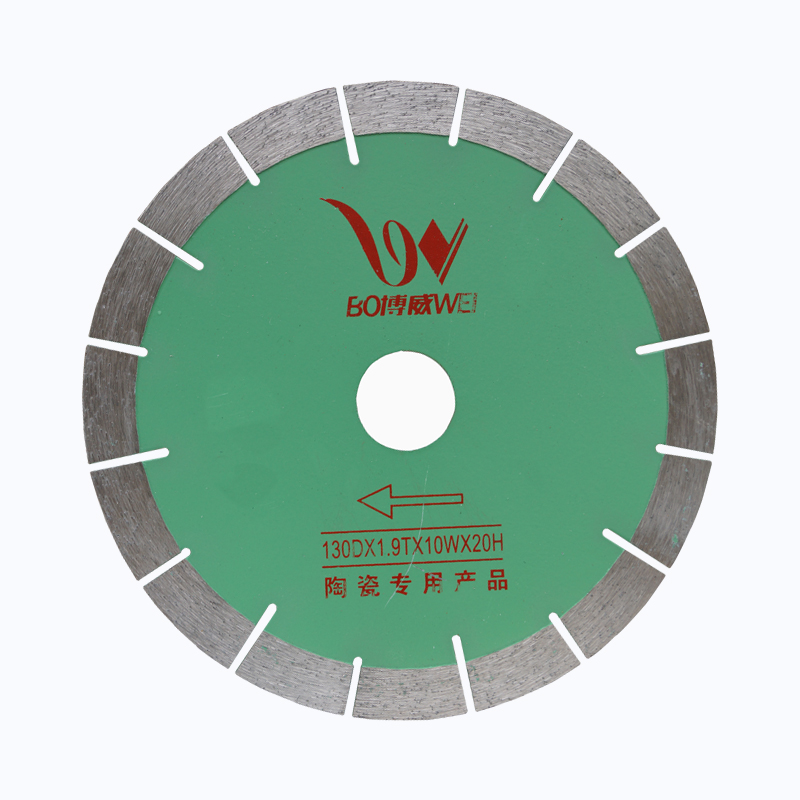

       1. Remove the cutting blade. The cutting blade itself is marked with the direction of rotation of the cutting blade. The thread of the compression nut of the fixed cutting blade is opposite to the rotation of the cutting blade, so that the bolts tend to be tightened with the rotation when the cutting blade rotates. When disassembling and replacing the cutting blade, first fix the cutting blade with a wrench, then follow the cutting direction according to its own arrow, and turn the upper nut to remove the cutting blade.

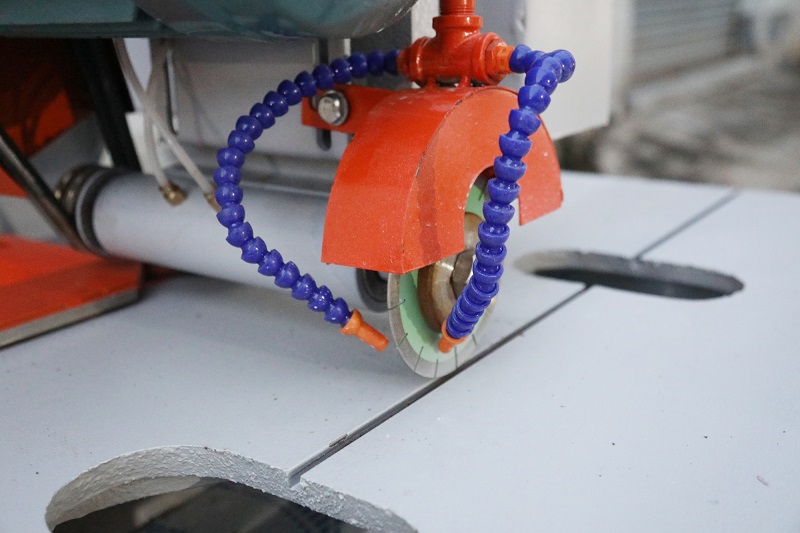

　　2. Pay attention to the installation of the cutting blade of thetile cutting machine. The direction of the arrow marked on the cutting blade must be consistent with the direction of the arrow marked on the outer cover of the cutting blade.

　　3. When removing parts, mark and record the parts in the order of removal.

　　4. Put on a new cutting blade.

　　5. Reset each part according to the reverse order and mark of the removed part.

　　6. Tighten the fixing nut.

　　7. Test run to check whether the cutting blade rotates smoothly. The cutting blade replacement is completed.

　　Tile cutting machine is also known as: tile machine. Electric desktop tile cutting machine is a popular and universal equipment in ceramic processing plants. It is one of the must products of ordinary processing plants. This machine has the advantages of multi-functions,high cutting efficiency, fast speed, and no edge collapse. The biggest advantage is : a piece of cutting blade can cut 400-600 meters of tiles, the cost is very low, now the main sales address on the market are mostly in Foshan, Guangdong, which is the birthplace of ceramic machinery in China, and the good quality is mainly Foshan Nanhai Hongyun Ceramic Machinery Factory, welcome to visit the factory.
