The multifunctional manual cutting machine is mainly used in ceramic tile shops/construction sites with small processing volume, and is favored by the majority of on-site processing customers.
1.The performance and characteristics of product:

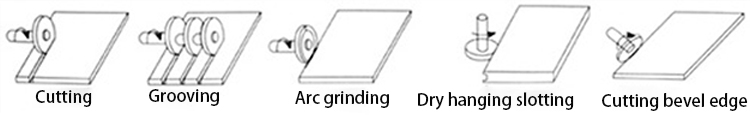

(1)One machine with multiple functions: cutting, grooving, round edges grinding, chamfering,inner corner cutting ,chamfering,etc;
(2) Adopts casting platform, which is not easy to deform, and its service life is 3-5 times of that of portable cutting machine.
2.Technical parameters:
Longitudinal cutting length
| 800mm | Horizontal cutting length | 400mm |
Machinable thickness
| 120mm | Diameter of cutting blade | 110-180mm |
Diameter of cutting blade hole
| 20mm | Rated power | 2.2KW |
Weight
| 200KG | Size | 1500*1200*1350mm |

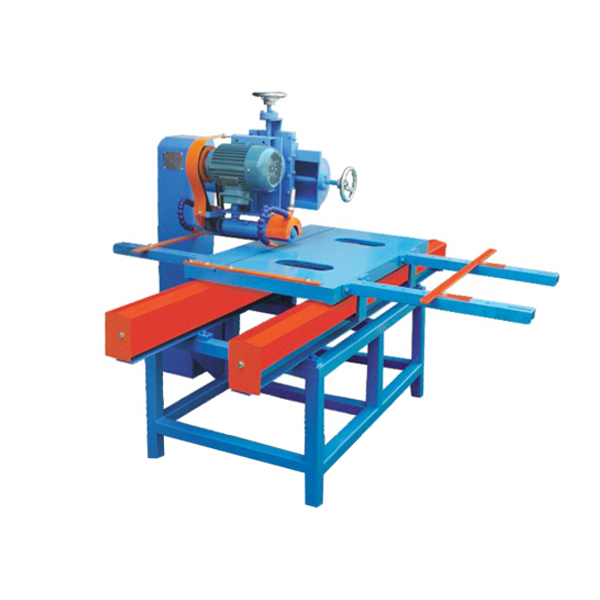

3.Equipment display:
