The ceramic tile cutter can cut stones with different depths. Generally, the processing of stones less than 8 cm (customizable) can turn waste into treasure, which greatly saves stone resources and is also conducive to environmental protection. It is suitable for dry cutting and wet cutting of all kinds of stone, building material tiles, granite, marble, cement board, red brick, refractory brick, etc. It is an indispensable weapon for home decoration. The cutting processing efficiency is high, coupled with the effective use of small stones, the production cost is lower. So how do you install the cutter you just bought?

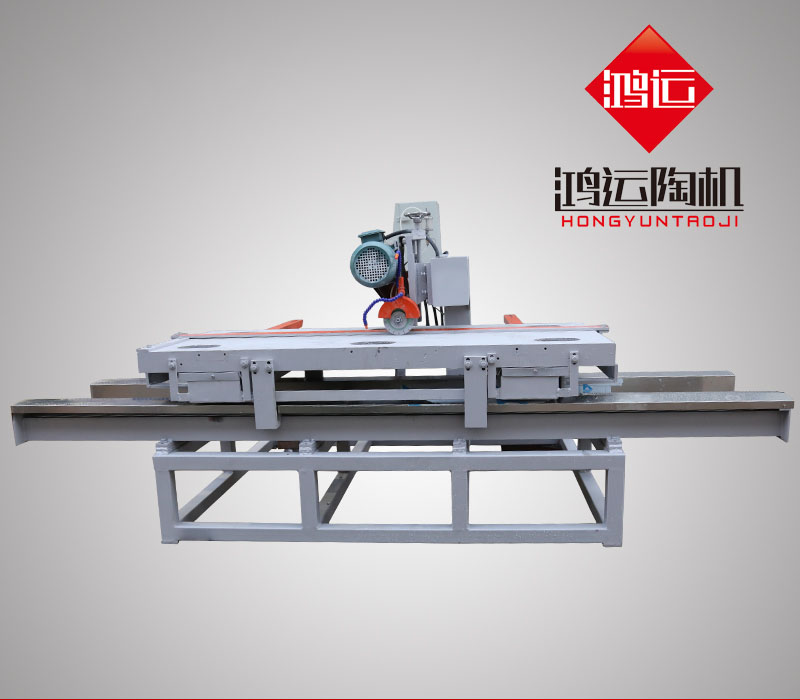

　　 How to install the tile cutter:

　　 1. First place two tracks in parallel on the ground. Its width is equal to the width of the moving wheel of the cutter frame.

　　2. Put the rack on the parallel rail, move back and forth completely in line with the rail, and move freely.

　　3. Put the main body of the stone cutter on the rack. The four rollers on the main unit should be exactly the same as the channel steel on the rack. After placement, the movement direction of the main unit crosses the movement direction of the rack at 90 degrees, and it can move freely.

　　 4. Install the power supply so that the motor is firmly connected to the host through the motor base, and the axis of the motor crosses the direction of the host horizontally and vertically.

　　 5. Install the belt

　　 6. Install the guard.

　　7. Start the motor and check whether the rotation direction of the saw blade shaft is consistent with the direction shown by the arrow of the guard.

　　 8. Install the saw blade. Connect the water pipe.

　　 Tile Cutter is just an abbreviation of a model, which contains many different models of equipment, the specific installation methods are naturally different, but the general installation methods are similar. Before proceeding with the installation, you must first familiarize yourself with the installation skills and precautions in order to install a more efficient cutter.
