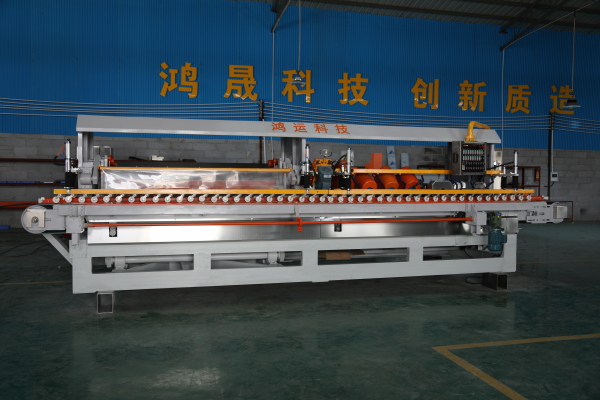

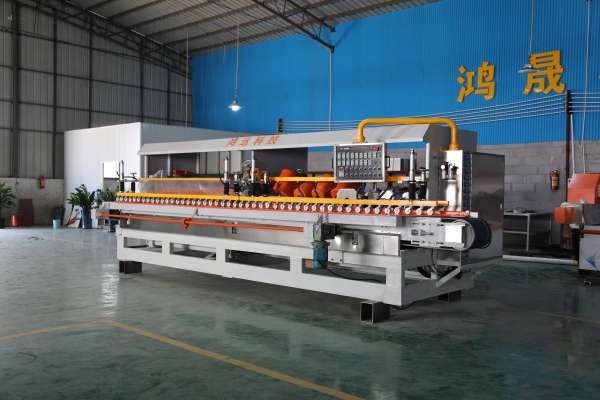

As modern society enters the era of technology, many processing factories have abandoned the traditional ceramic tile processing technology and replaced it with ceramic tile processing equipment. Nowadays, the 14-head arc polishing machine is more popular. This machine is mainly used for edge grinding, chamfering and slotting, trimming, and directly used for line polishing, slotting side grooves, L-shaped grooves, and other purposes. However, many users do not know how to use it. The following describes the the operating procedures of the 14-head arc polishing.

    Wiring method:

    A = battle line B = battle line C = battle line; Cable requirements: 16m 2 copper wire

  After power on, turn on the trimming motor when the machine is tested, and the motor rotates counterclockwise, which is positive rotation. Otherwise, reverse, reverse adjustment method, arbitrary exchange of two battle line can be.

    Water connection:

    Need to prepare a 1.5KW sewage pump, diameter: 40mm;

    Start up sequence and preparation steps:

                                 1.Rounded edge + grooving:

                                 (1) turn on the water first

                                 (2) Turn on all power switches

                                 (3)Adjust the size to be processed (press the "in" and "back" buttons)

                                 (4)Trimming

                                 (5) Slotting

                                 (6)45 degree chamfer

                                 (7)45 degree chamfer 2

                                 (8)Shaping round wheel

                                 (9)Swing

                                 (10)Polishing motor 1-4.

                               2. 45 degree chamfer polishing:

                              (1) turn on the water first

                              (2)Turn on all power switches

                              (3)Adjust the size to be processed (press the "in" and "back" buttons)

                              (4)Trimming

                              (5)45 degree chamfer 1;

                              (6)45 degree chamfer 2;

                              (7)Polishing motor 1-4;

                              3. chamfering inner corner:

                              (1) turn on the water first

                              (2)Turn on all power switches

                              (3)Adjust the size to be processed (press the "in" and "back" buttons)

                              (4)Turn the brick upside down with the back facing up

                              (5) Press the roller tightly

                              (6)Trimming motor and setting round edge are rotated backward!

                              (7)45 degree chamfer 1

                              (8)45 degree chamfer 2

                              (9)Turn the automatic down grinding head off or to manual

   Maintenance items:

   1. There are automatic and manual modes when the grinding head descends. The service life of the grinding head is about 5-10 hours. Pay attention to check whether the grinding head is still working.

   2. The conveyor belt motor and the size adjusting motor need to be maintained with oil once every three months, and the grinding head spindle needs to be turned on every day to add a little oil.

    3. The machine tool needs to be fixed horizontally.
