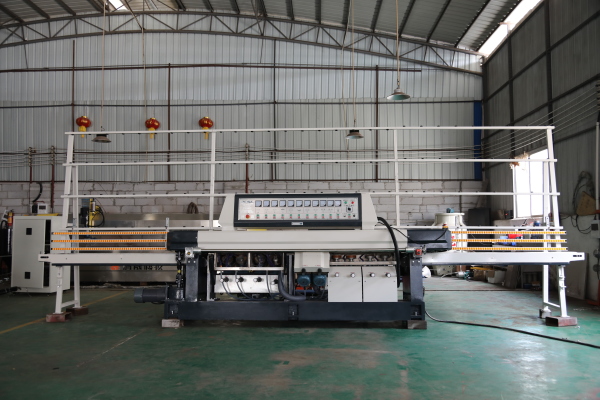

Hongyun 3200 automatic rock slab chamfering machine is also called automatic 10 grinding head rock slab chamfering machine.It adopts frequency conversion speed control feeding,which is suitable for the bottom edge of rock slabs of different sizes and thickness, straight line 45 degree, swing angle function panel adjustment Large inclined planes can be processed.The final and rough grinding and polishing can be finished in one time. After polishing, the plane is close to the smoothness of the parent body. When adjusting different processing thicknesses (refer to the digital display on the front beam for adjustment), it has the advantages of advanced structure, high accuracy, convenient operation, and continuous processing of the same thickness. It is a rock slab processing equipment with better deep processing effect.

HY-The advantages of automatic 3200 rock slab chamfering machine

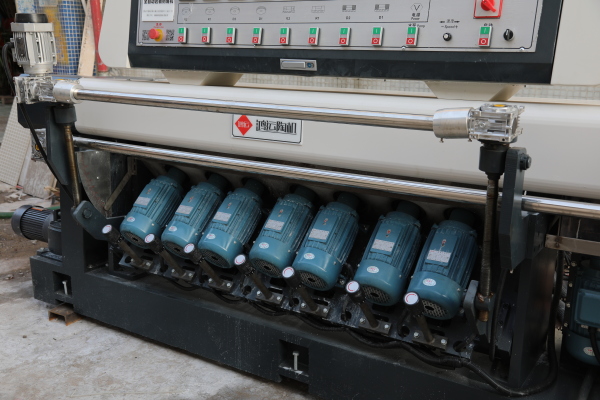

　　1. frequency conversion motor
　　 plates of different thickness can be directly by operating the panel switch, the speed can be changed to achieve balance. Convenient operation.

　　2. Swing function
　　Angle range of Back chamfering: 20-60°(refers to the angle between the motor axis and the horizontal plane), the angle can be adjusted by the panel.

　　3.thickened saw blade
　　 Seamless chamfering click angle range: 20-60° (refers to the angle between the motor axis and the horizontal plane), the angle can be adjusted by the panel.

　　4. Synchronous belt transmission
　　 45 degree grind, high splicing precision and smooth, stable conveying

　　The main technical parameters of the product
　　1. minimum size: 60mm*200mm

　　2. Maximum size: unlimited

　　3. processing thickness: 3.3mm-20mm

　　4. Total power: 32KW

　　5. Conveying speed: 0.7-3M/MIN

　　6. Equipment weight: 3200KG

　  7. Power supply: 380V50HZ

　　8. Equipment size: 7000mm*1000mm*2000mm
