Rock slab cutter can cut different specifications of patterns for cutting and polishing. At the same time, it can also cut exterior wall panels and roof panels of various structures that are not used at the seam or cutter head, which greatly improves the production efficiency. It has achieved the ideal effect that ordinary ceramic tile cutters can't achieve. Now for the cutting process of rock slabs, Hongyun rock slab CNC double-blade bridge cutter has solved the problem of rock slab cutting.

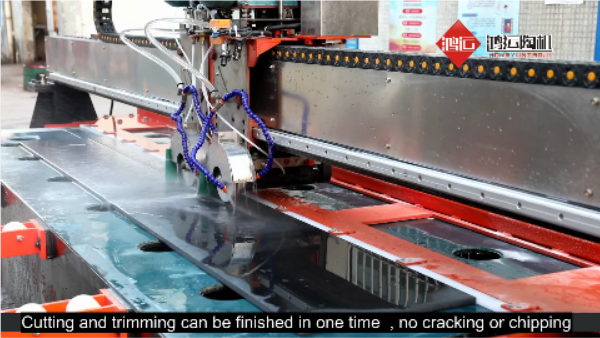

  Hongyun rock slab CNC double-blade bridge cutter product features:

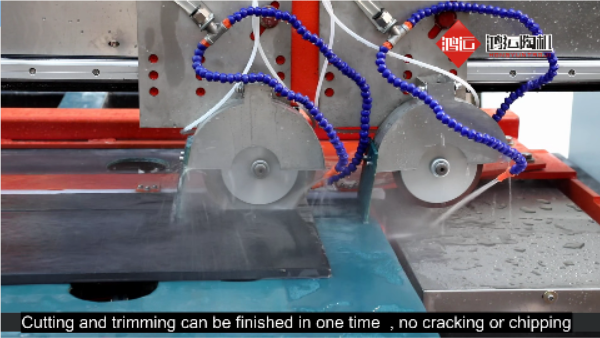

　1. The CNC cutting precision is high, and the error is within 0.1mm. Double blade head (the first blade trims the edge and the second blade cuts), no chipping, no dropping corners.

　2. the beam adopts H steel structure, the longitudinal device, the rigidity is 2-3 times that of the ordinary square tube, and it is not easy to deform after heat treatment.

　3. The front and rear cutter head adopts dual 3.0KW motors, and the cutting blade uses: 190mm large cutting blade, which has the best cutting effect.

　4. The stop ruler adopts a 500mm super wide reinforced type and is equipped with a rubber strip, which has high precision and is not easy to cause damage to the board.

　5. The screw adopts TBI, and the oil tank uses an oil-immersed gauge, which is durable and stable.

   6.7-inch large screens can complete the cutting task as quickly as possible by simply entering the cutting size.

    Hongyun automatic 3200 rock slab cutting machine is an automatic beveling machine designed by our factory for seamless beveling of rock slabs. The frequency conversion speed control of the machine is suitable for the bottom edge of rock slabs of different sizes and thicknesses. The straight line 45°, the swing angle function panel can be adjusted to process large inclined surfaces and other fine, rough grinding and polishing-complete in one time. After polishing, the plane is close to the smoothness of the parent body. When adjusting different processing thicknesses (refer to the digital display on the front beam for adjustment), it has the advantages of advanced structure, high accuracy, convenient operation, and continuous processing of the same thickness. It can support personalized customization, and can customize processing equipment with different functions and effects according to different needs. It is a better processing equipment for deep processing of rock slabs.
