Automatic multi-functional porcelain tile chamfering machine is an automatic chamfering machine specially designed by our factory for seamless chamfering of porcelain tile. The machine can seamlessly chamfer from 15~45 degrees without cracking or size head, and automatically run chamfering when placing plates on the working platform. The machine can also be customized, according to different needs, customized processing equipment of different functions and effects, is one of the indispensable equipment of the porcelain tile processing plant.
1. Technical parameters:
Working table size | 3200*1600mm | Chamfering speed
| 1.5-2m/min |
Chamfering wheels number
| 6 | Trimming wheels number | 2 |
Working mode
| Automatic chamfering | Conveyor belts number | 4 |
Processing thickness | 6-20mm | Water consumption
| 150L/min |
Total power
| 36KW | Weight | 3000KG |
Size | 6500*1000*3500mm | ||
2.Equipment display：

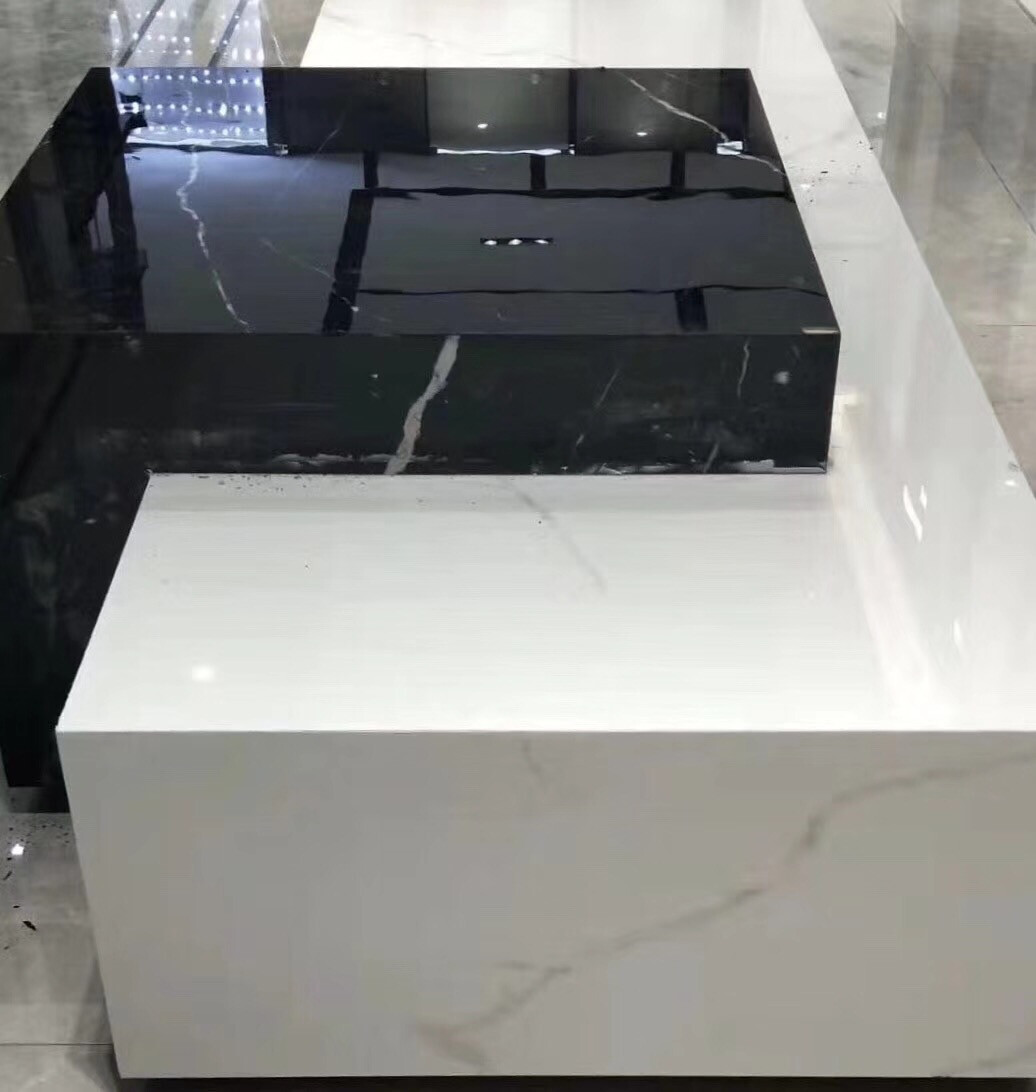

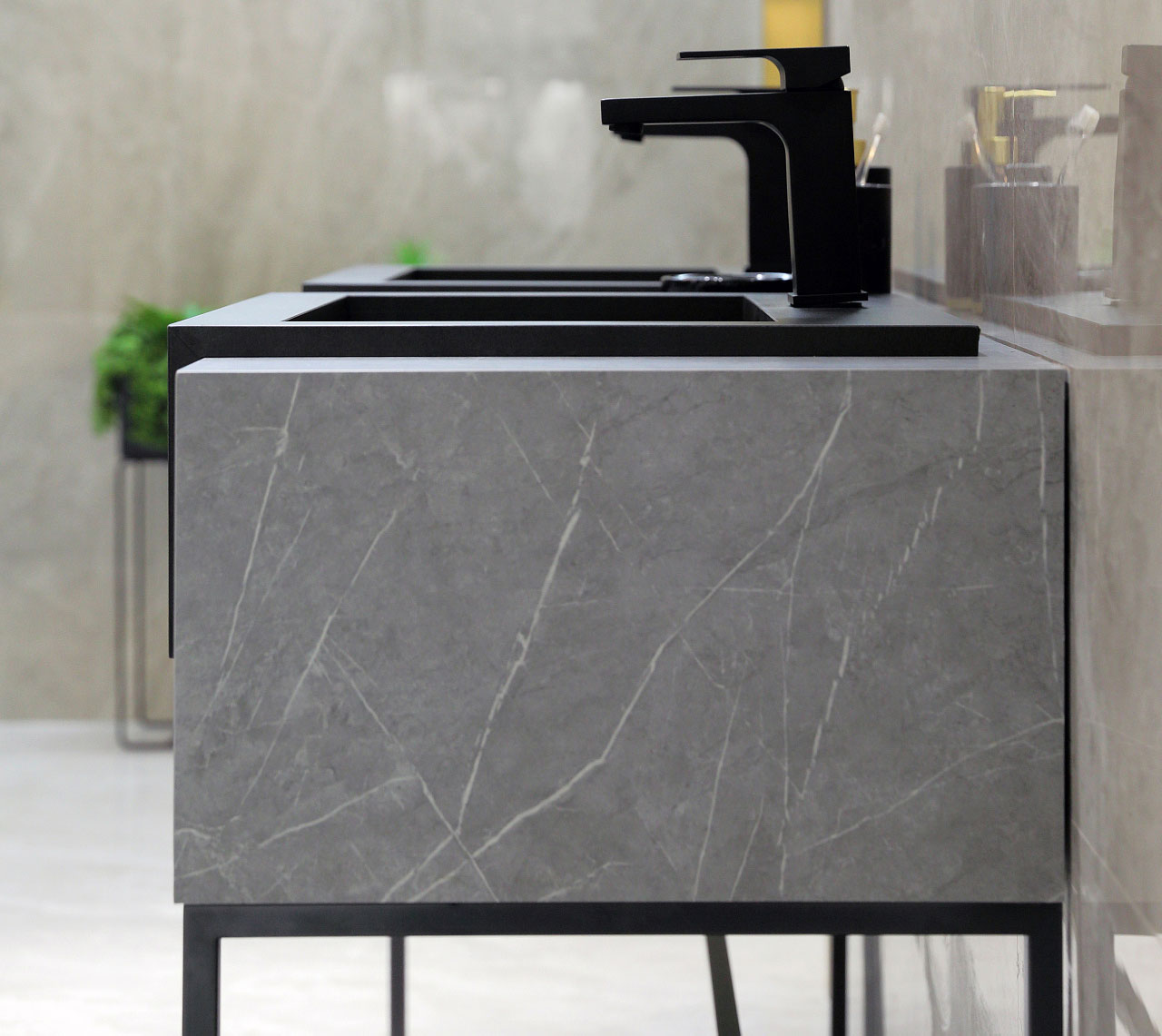

3.The chamfering effect:
