The porcelain tile double-head chamfering machine is specially designed for porcelain tile table. It is aimed at chamfering fillet.The machine can chamfer radius 5-50mm fillet,with servo positioning.It can automatically rough grinding and final polishing,and the brightness can reach more than 80%. It comes with a correction function.All guide rail planes have been annealed and hardened.The equipment is durable.The automatic oil pump can avoid the trouble of the worker forgetting to refuel.Double heads One of them can be controlled separately,which greatly improves work efficiency.There are two models of this machine: 1600 and 2300 for your choice.
1. Product features:
(1)Annealing and hardening treatment of guide rail,which is durable and reliable;
(2)Adopts TBI imported guide screw, no gap;
(3)Adopts PLC servo, PLC control can automatically set rough grinding and polishing times, and automatically adjust width;
(4) HD display, touch one key to set all functions,and adjust width automatically;
(5) Equipped with working auxiliary wheels to make operation more convenient.
2. technical parameters:
Model | 2300 type | Working table size | 2300mm
|
chamfer angle | 5-50mm
| Chamfering motor power | 2.7KW/set
|
Machinable maximum width | 2300mm
| Machinable minimum width | 350mm
|
Machinable thickness | 3-15mm
| Total power | 5KW |
Chamfering process | Rough and fine polishing | Weight | 1500KG
|
Size
| 3600*1000*1680mm | ||
3. equipment display:

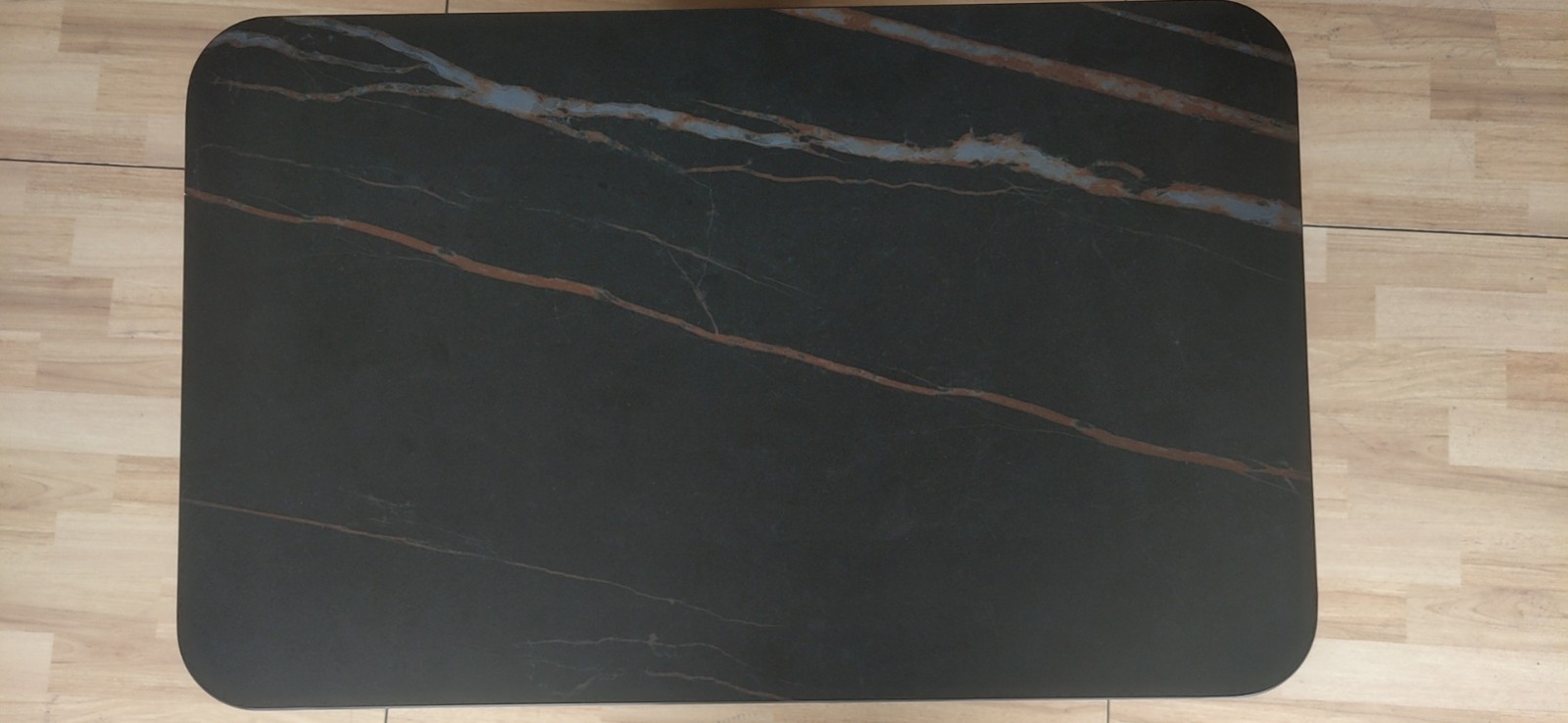

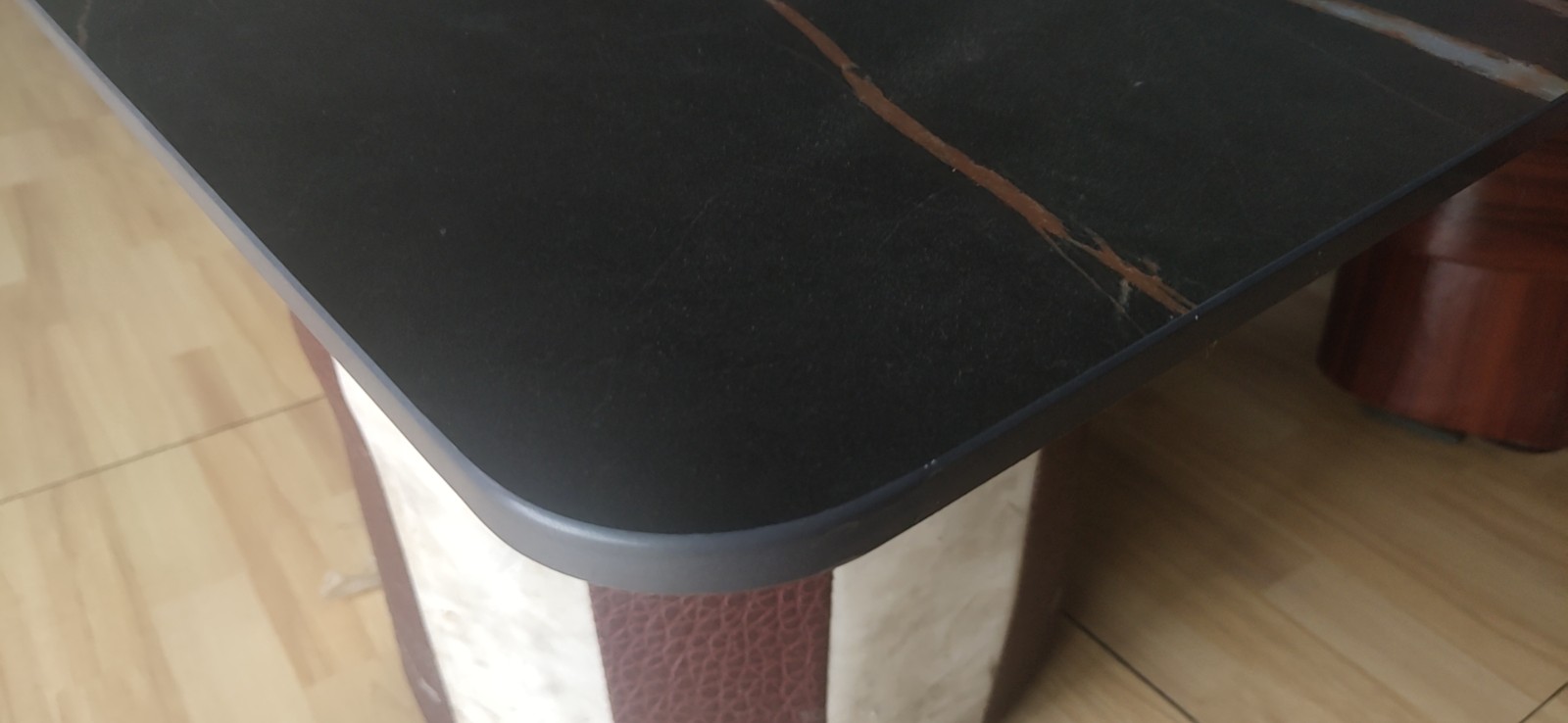

4. The fillet processing effect:
