With the emergence of rock slabs, more and more ceramic tile processing factories have begun to enter the field of rock slab processing.In theory, rock slab processing involves a lot of knowledge, including cutting and trimming techniques. For rock slab cutting, the rock slab CNC double-blade bridge cutting machine is a tool to solve this demand.

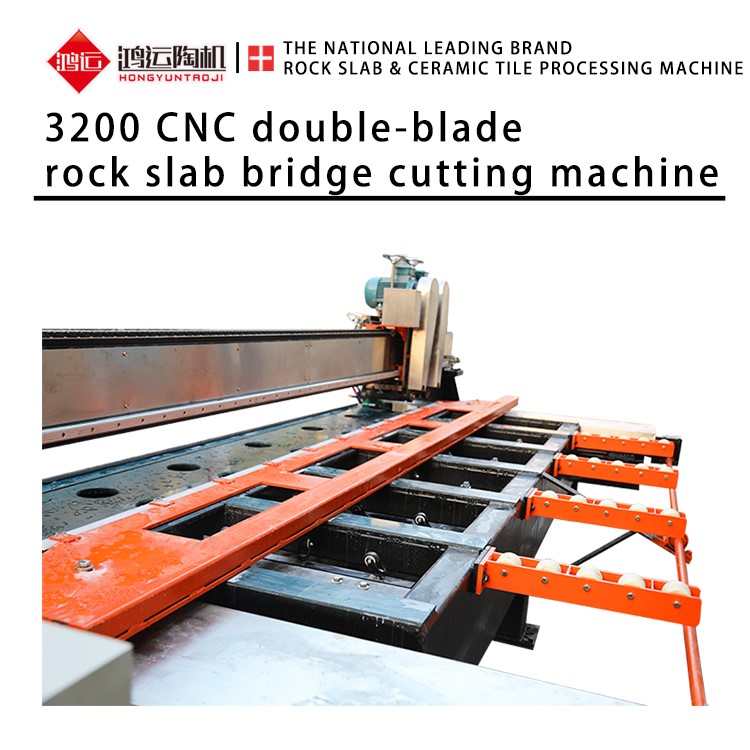

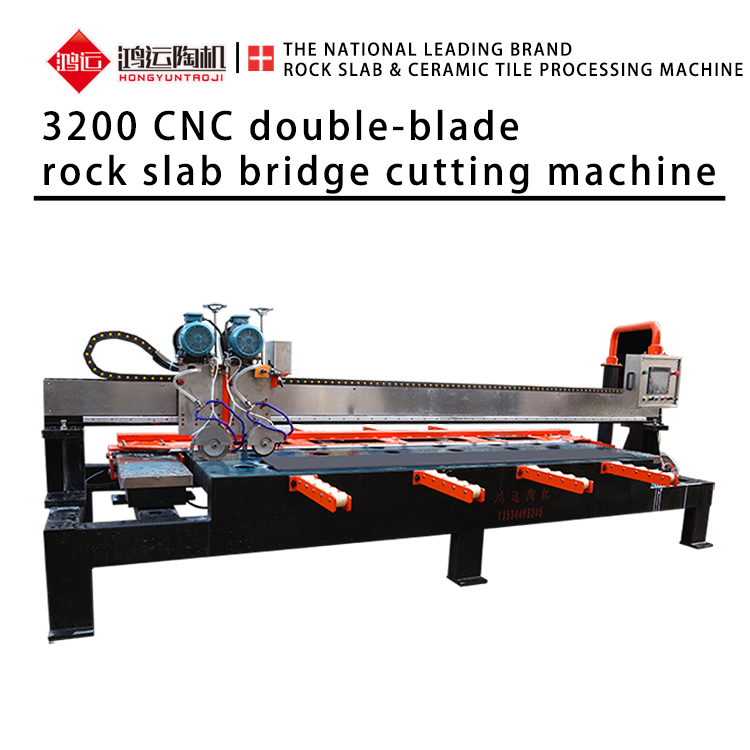

   The main function of the HY-3200 CNC double-blade bridge cutting machine for rock slabs is to complete CNC precise cutting and trimming at one time. It has the characteristics of no chipping and no corner drop. It is mainly used for rock slabs and ceramic slabs. It can cut 3.2mX1.6m plates. Take 15mm rock slab as an example, and the cutting speed can reach 2.5-3m/min: it is widely used for cutting materials in rock slab processing plants.

    Product features of HY-3200 rock slab CNC double-blade bridge cutting machine:
　　 1. The CNC cutting precision is high, and the error is within 0.1mm. Double cutter head (the first cutter is for trimming and the second cutter is for cutting), without chipping or dropping corners.

　　  2. the beam adopts H steel structure, the longitudinal device, the rigidity is 2-3 times that of the ordinary square tube, and it is not easy to deform after heat treatment.

　　 3. The front and rear cutter head adopts dual 3.0KW motors, and the saw blade uses: 190mm large saw blade, which has the best cutting effect.

　　 4. The stop ruler adopts a 500mm super wide reinforced type and is equipped with a rubber strip, which has high precision and is not easy to cause damage to the board.

　　 5. The screw adopts TBI, and the oil tank uses an oil-immersed gauge, which is durable and stable.

　　 6. 7-inch large screens can complete the cutting task as quickly as possible by simply inputting the cutting size.

     Foshan Nanhai Hongyun Ceramic Machinery Co., Ltd. is a manufacturing enterprise focusing on the field of ceramic deep-processing equipment. It integrates production, sales, installation, training, and after-sales as a one-stop service enterprise. It truly realizes the direct delivery from the factory to the customer. There is no dealer link in the middle, which greatly saves the purchase cost for customers.
