What are the advantages of Hongyun ceramic tile dry hanging slotting machine
time : 2021-06-14 11:20 views : 30

    Ceramic tile processing equipment is an important tool to make ceramic tiles appear in various perfect forms in front of everyone. However, there are many ceramic tile processing equipment on the market. Now this machine is a  ceramic tile dry hanging slotting machine. What are the advantages of this machine?

Tile drying slotting machine

  The advantages of  ceramic tile dry hanging slotting machine

  The  ceramic tile dry hanging slotting machine is a ceramic tile processing equipment specially developed for processing ceramic tiles during decoration. It can cut a 45-degree bevel corner on the back of the ceramic tile and combine with the pendant to form a popular decoration tile without cement.

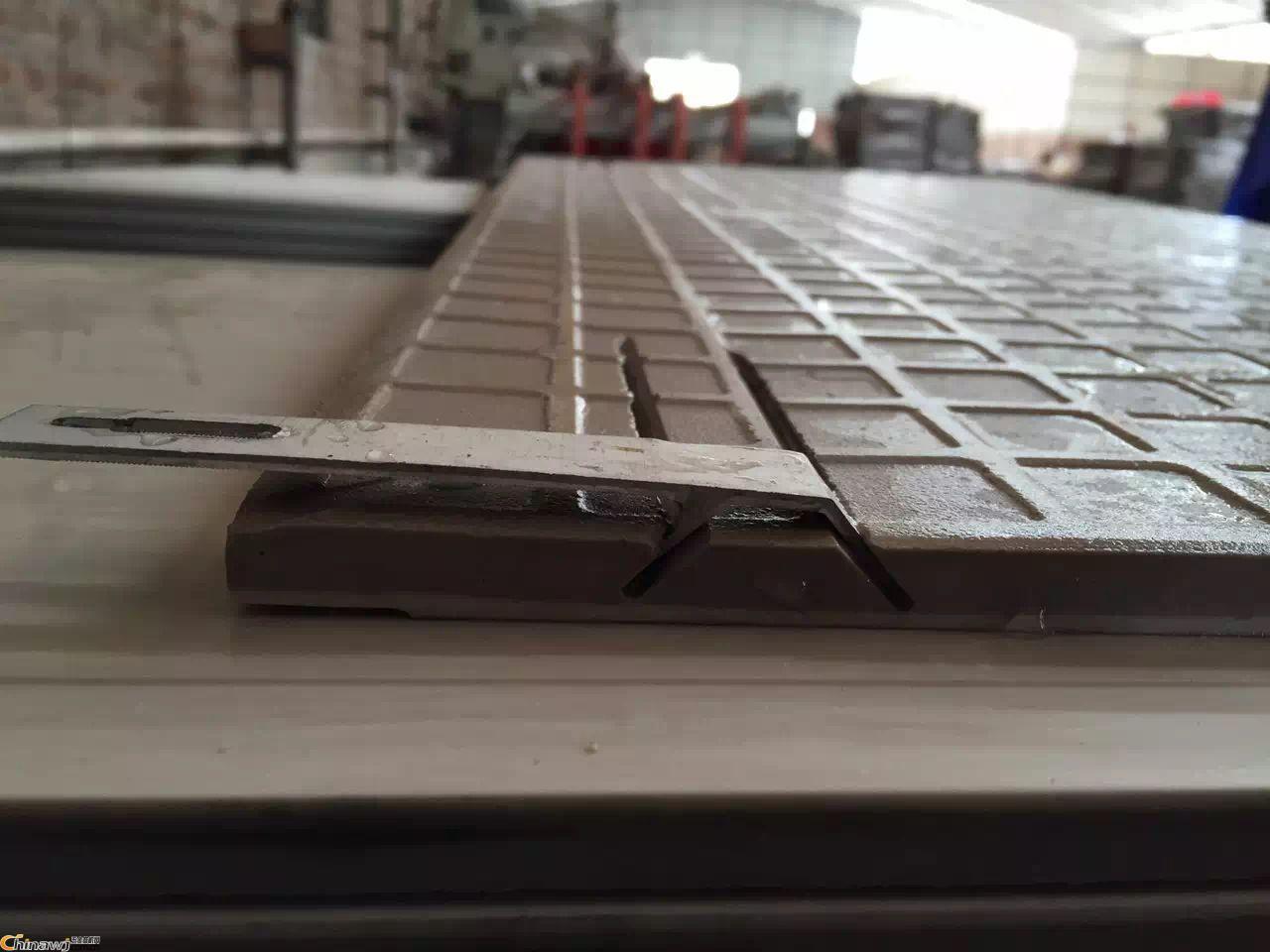

Tile dry hanging slotting effect

     The design of the  ceramic tile dry hanging slotting machine is reasonable, the double cutter heads pneumatically automatically control the lifting, automatic induction, can be adjusted left and right, the cutter head is lifted by air pressure, the angle is adjustable, the cutting distance is controlled by the stroke switch, the degree of automation is high, the operation is convenient, and the processing dovetail the dry hanging effect is good. It is a dry-hanging processing equipment for ceramic tiles and stone without breaking edges and corners. It is a dry-hanging processing equipment developed and produced by Foshan Nanhai Hongyun Ceramic Machinery Co., Ltd.

Technical Parameters

Model

Tile   dry hanging machine

unit

Conveyor belt width

300

mm

Number of cutting motors

2

set

Diameter cutting blade

120-150

mm

Processing width

150

mm

Processing thickness

10-20

mm

Maximum   processing size

600-1200

mm

Processing speed

0.8-5

M/min

Size

2.3*1.2*1.75

m

Weight

450

kg

     Foshan Nanhai Hongyun Ceramic Machinery Co., Ltd. is located at No. 1, Third Industrial Zone, Baishaqiao Village, Nanhai District, Foshan City, Guangdong Province, China. It is a professional manufacturer of all kinds of ceramic tile and rock slab deep processing machine ,such as:Edge grinding machine, stone line machine, mosaic slotting machine, CNC front and rear blade cutting machine, 800 type tile edge and corner trimming machine, single-group continuous cutting machine, ceramic tile processing equipment, ceramic processing machinery, ceramic tile edging machine, ceramic tile polishing Machine, ceramic tile chamfering machine, ceramic tile processing machinery, automatic tile machine, manual cutting machine.
