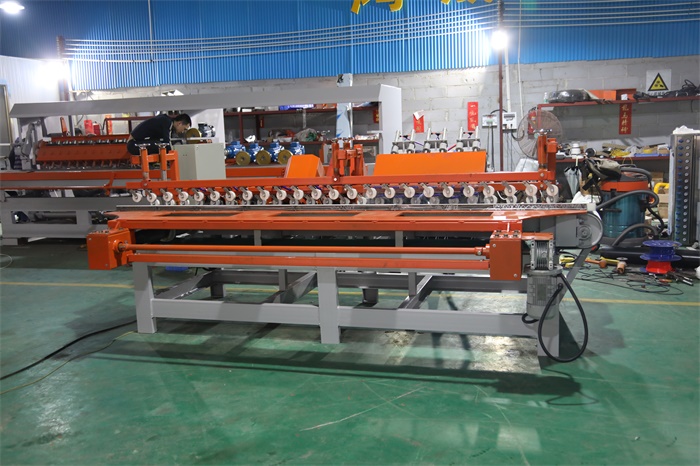

Product introduction of Hongyun 1200 automatic ceramic tile chamfering machine:
Hongyun 1200 automatic ceramic tile chamfering machine, also called six-head ceramic tile chamfering machine, is an automatic processing model specially developed for 45 degree chamfering and polishing or chamfering the inner corners on ceramic tile processing plants/construction sites. The equipment is small in size, multi-functional, and repairable. It has the functions of straight edge trimming, 45-degree chamfering and polishing,inner corners cutting,with high chamfering processing efficiency, average daily processing capacity of 2500 meters (calculated in 8 hours), processing tiles gloss over 90%, fast processing speed and high accuracy of chamfering inner corners.It has advantages of low damage rate, etc.,which are favored by real estate construction sites and ceramic tile processing factories.
Features of HY-1200 automatic tile chamfering machine
1. frequency conversion speed regulation
It can directly operate the panel switch, change the speed to cut different thickness of the plate. Convenient operation.
2. new configuration
1 trimming blade
3 45 degree chamfering wheels
6 grinding heads for polishing
Parameters of automatic ceramic tile chamfering machine:
Maximum processing size: 1200mm
Cutting thickness: 6-30mm
Cutting disc diameter: 120-150mm
Total power: 16KW
Equipment weight: 1800kg
Equipment size: 3300mm*22000mm*1400mm

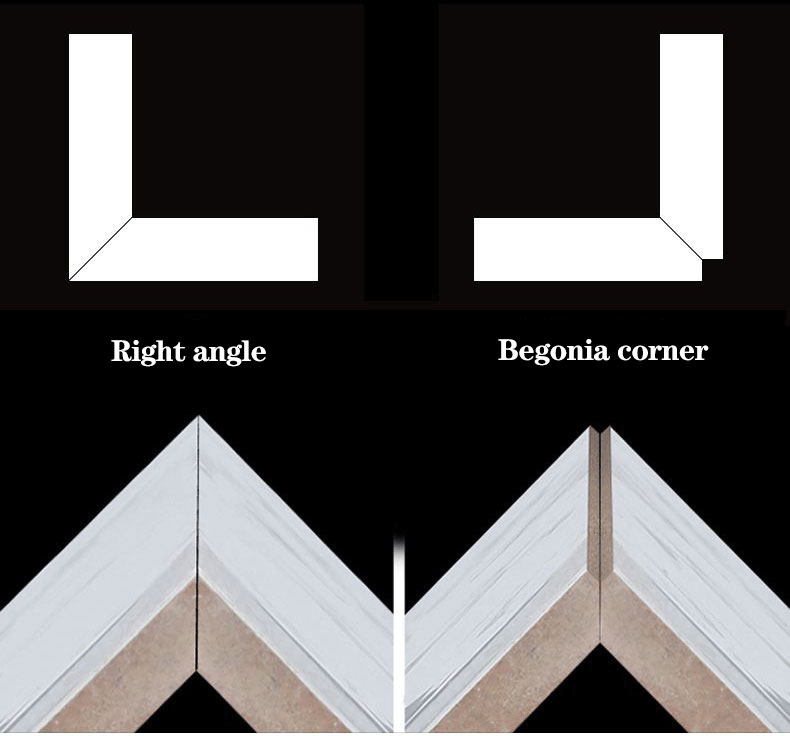

Product processing effect:
Foshan Nanhai Hongyun Ceramic Machinery Co., Ltd. was established in 2008. Since its establishment, it has been focusing on the production of ceramic deep processing equipment,such as water jets, multi-function arc polishing machines, arc line polishing machines, CNC tile cutting machines, and ceramic tile hand cutting machines,mosaic slotting machine, dry hanging slotting machine, single-group continuous cutting machine, etc. The company is a one-stop service company integrating production, sales, installation training,after-sales, and has been awarded the title of industry sales advanced unit for many consecutive years. Since its establishment, it has been insisting on using high-quality raw materials, advanced production technology and equipment to produce batches of high-quality, durable, safe and reliable products.It is favored by many customers.
