Hongyun 2100 Rock Slab special-Shaped Edge grinding Machine
time : 2021-06-13 09:32 views : 27

     Product introduction of HY-2100 rock slab special-shaped edge grinding machine

    The rock slab special-shaped edge grinding machine is mainly for the special-shaped edge grinding of the rock table/coffee table/cabinet. The machine can grind the edges, chamfer and polish, and it can also grind the inner circle. Among them, the round table can be automatically ground. For special-shaped surfaces, it works by hand pushing semi-automatically.It is a multi-purpose model with high cost performance, is one of the indispensable equipment for rock slab processing!

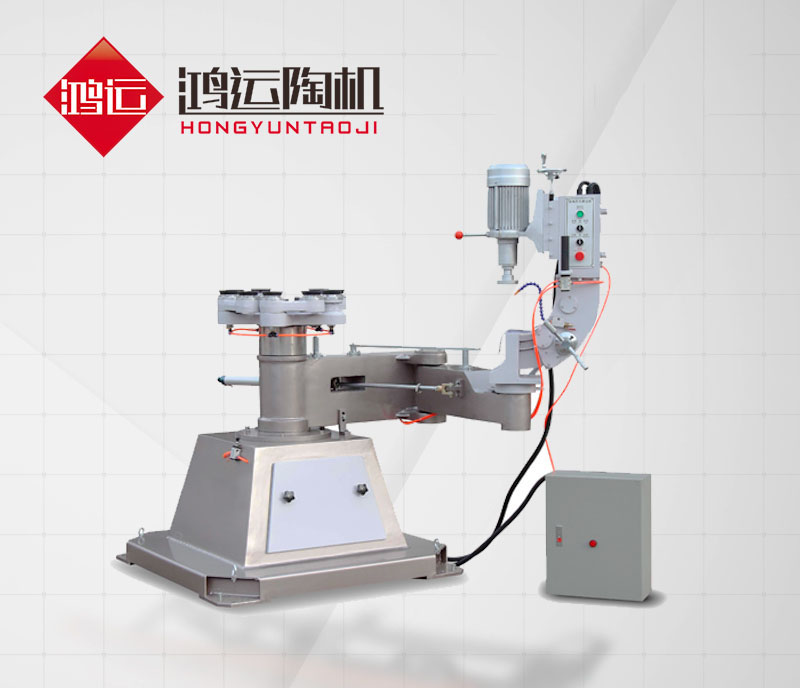

 HY-2100 rock slab edge grinding machine

    The main features of HY-2100 rock slab edge grinding machine:
   1. adjustable speed motor
  The motor has a low, medium and high speed, which can adjust the speed of different grinding heads according to different products.

   2. comes with a vacuum pump sucker
   comes with a vacuum pump sucker, which sucks the rock slab tightly and has high stability.

   3. automatic rounding system
  When grinding the round rock slab dining table, it can automatically rotate and grind the rock board.

  4. control box
  The main engine electric box system can control high, middle and low speeds, and grind the rock slab.

  The main technical parameters of the product
  1. Slab rotation diameter: 100-2100MM

  2. The thickness of the rock slab: 3-30MM

  3. Angle of bevel edge: 0-20 degree

   4. Turntable speed: 1-4R/MIN

   5. Satellite turntable speed: (2~10R/MIN)

   6. Bevel grinding wheel: ф150 (bowl shape)

   7. edge grinding wheel: ф100ф150 (preferred)

   8. Voltage 3-phase electricity: 380V/50HZ

   9. The back diameter of the beveled rock slab: 400-2100MM

   10. Maximum bevel width: 35MM

   11. Total power: 3.2KW

   12. Weight: 1000kg

         13. Dimensions: 1200*1200*1800mm


   Product processing effect:

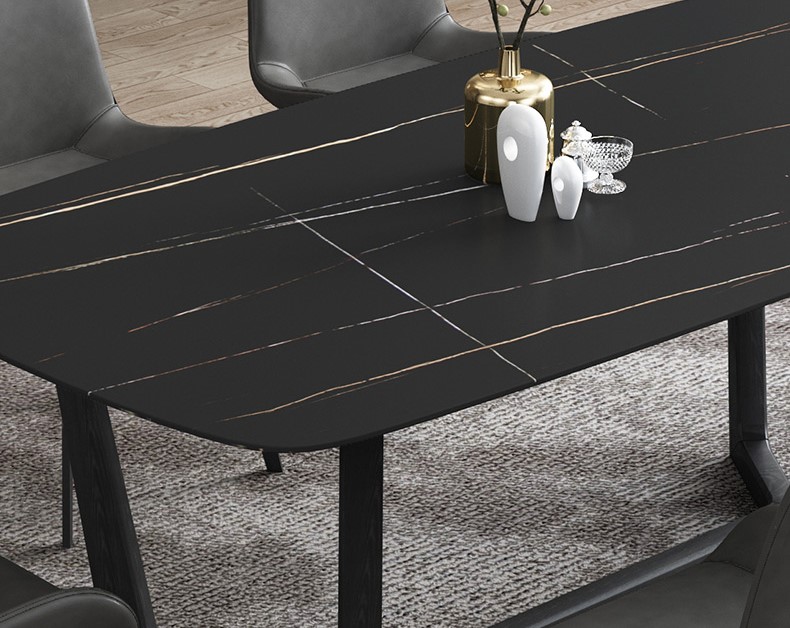

Rock slab table processing

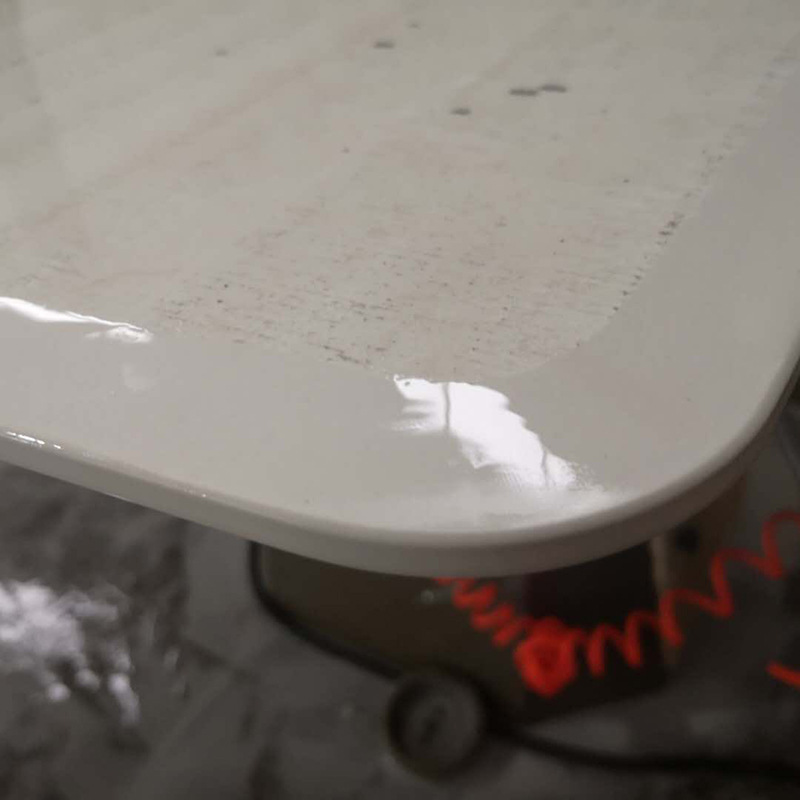

Rock slab table edge grinding

   Foshan Nanhai Hongyun Ceramic Machinery Co., Ltd. is a brand manufacturer focusing on the field of ceramic deep processing equipment. It is a one-stop service enterprise integrating production, sales, installation, training,after-sales, and has been awarded the title of industry sales advanced unit for many years. We are willing to work with you to become an industry pioneer, use our professional knowledge to help you solve production problems, use our sophisticated equipment to meet your development needs, and use our integrity to build a long-term cooperative relationship. We are willing to promote your success with excellent quality, professional and meticulous service, and create a better tomorrow with each other!
