A universal cutting machine—Hongyun 4020 AC five-axis waterjet cutting machine
time : 2021-06-02 11:38 views : 4

       AC five-axis cutting system is based on the original three-axis waterjet cutting machine (X-axis, Y-axis, Z-axis), and adds A-axis (rotation around X-axis, that is, yaw angle), C-axis (rotation around Z-axis) , That is, rotating axis), can realize 360 infinite rotation and cutting angle of 0-60 degrees during cutting, and the Z-axis stroke is the same as that of a standard waterjet. It breaks through the limitation of traditional waterjet cutting that can only cut vertically or at a small angle, and breaks through the limitation of traditional manual cutting angle adjustment. Therefore, the current five-axis systems in the international market are all AC five-axis.

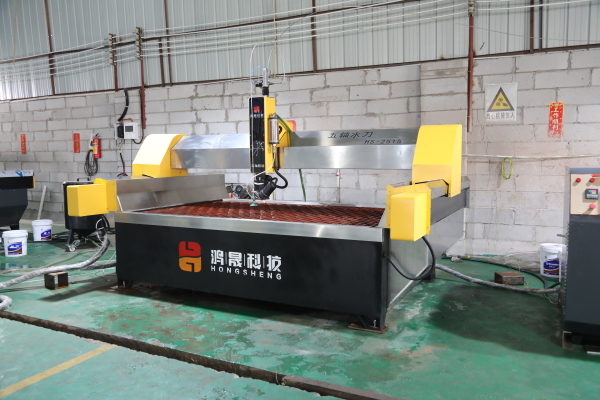

   Hongyun 4020 AC five-axis waterjet cutting machine has a length of 5500mm, a width of 3500mm, a height of 1700mm, a weight of 5000kg, and a total power of 40KW. AC five-axis cutter head: 360 unlimited rotation cutting, laser height measurement and automatic drying of water, can perfectly cut and process various complicated process drawings, and a brand-new CNC control system.

HY-AC five-axis waterjet

  The main features of HY-AC five-axis waterjet:


  1. The cutter head can rotate 360 degrees infinitely, and the cutting angle is 0-60 degrees. It can be used to cut the rock slab at an angle of 45 degrees to achieve seamless splicing.


       2. The original German imported laser scanner is mounted on the cutting spindle, and the large-size plates are scanned and positioned before cutting. This can ensure that the high-precision processing of waterjet cutting requires the five-axis waterjet. The advantage is that the cutting plane is perfect and can be cut. Process all kinds of complicated process drawings.


   3. the cutting platform adopts imported screw guide rails, XY uses oil-immersed rails, and an effective dust-proof and waterproof design structure to ensure that the accuracy and stability reach high-performance standards!

Tile waterjet cutting machine

     With the wide application of high-pressure waterjet technology, people's requirements for the use of waterjet cutting machines are gradually increasing. The original ordinary standard three-axis waterjet is difficult to meet more complex cutting requirements, such as completely vertical cutting, bevel chamfering as well as more complex gradient surface cutting, in this case, a five-axis cutting system with dynamic adjustment function and deflection angle came into being, becoming a sign of high-end configuration in the field of waterjet cutting machines.
